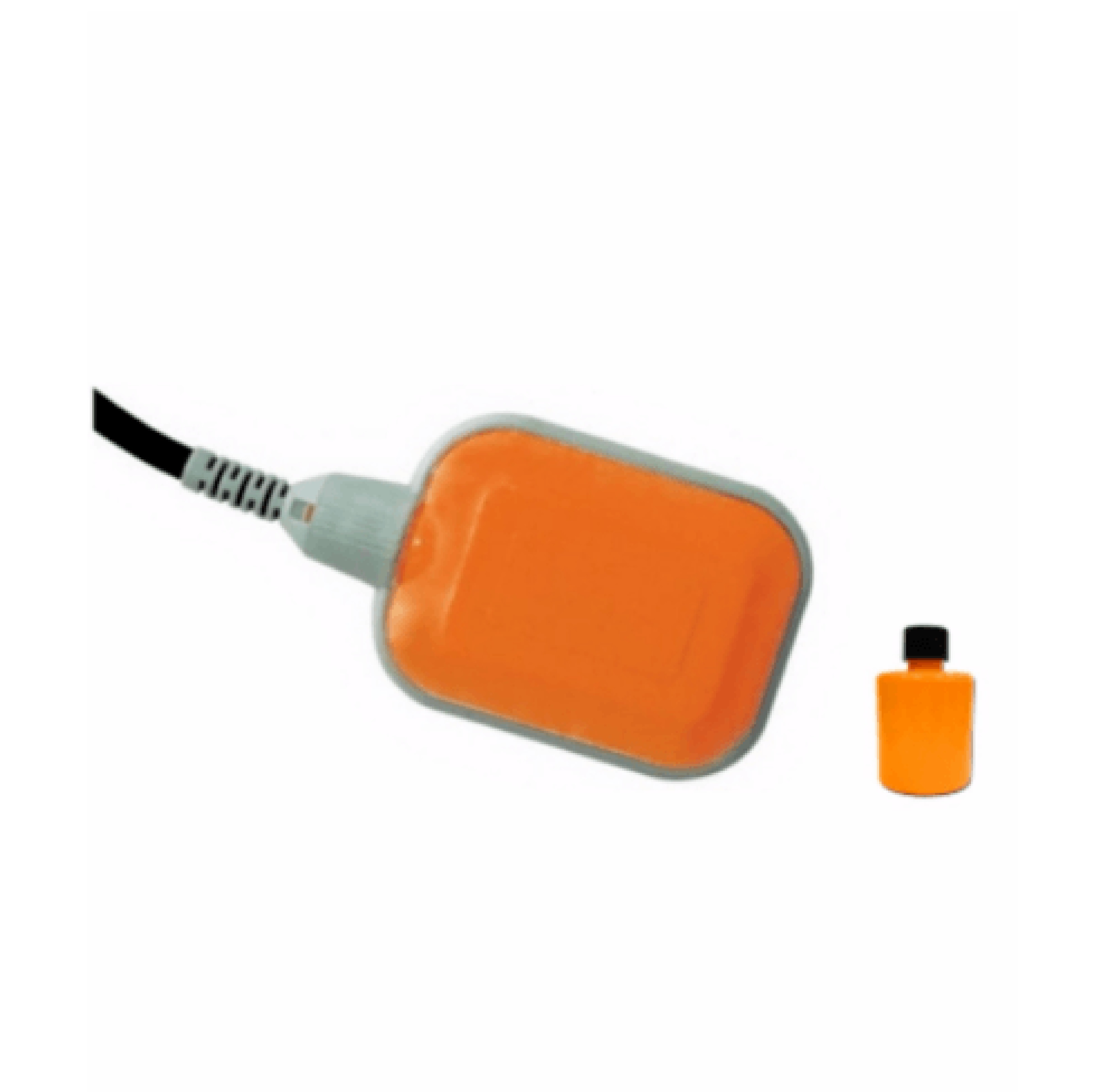

SUMOTO สวิทซ์ลูกลอยแบบเหลี่ยม รุ่น FLO1
SUMOTO สวิทซ์ลูกลอยแบบเหลี่ยม รุ่น FLO1
คุณสมบัติทั่วไป
1. หน้าคอนแท็คของไมโครสวิทซ์ ทนกระแสไฟฟ้า สูงสุด 15 แอมแปร์2. ใช้กับระบบไฟฟ้า 220 โวลท์ 50ไซเกิ้ล3. สามารถต่อพ่วงปั๊มน้ำโดยตรง สำหรับปั๊มน้ำไม่เกิน 2.0 แรงม้า ถ้าต้องการควบคุมมอเตอร์ของปั๊มน้ำขนาดมากกว่า 2.0 แรงม้าขึ้นไป หรือใช้ไฟฟ้า 380 โวลท์ 50 ไซเกิ้ล 3 เฟส ควรต่อผ่านวงจร Magnatic Contactor4. ระบบการซีลของ FLO-1 (HOUSING) มีระบบการซีลด้วยกรรมวิธีที่พิเศษ เพื่อให้มั่นใจได้ว่าน้ำจะไม่เข้าไปในตัวลูกลอย5. ตุ้มถ่วงน้ำหนักใช้ตั้งระยะความยาวของสายไฟจากขั้วของลูกลอยให้สามารถ สวิงขึ้นลงได้อย่างเหมาะสม เพื่อควบคุมการทำงาน ของปั๊มตามระดับน้ำขึ้นสูงต่ำตามต้องการ6. FLO-1 ทำจากวัสดุ Poly propylene (PP) ที่ไม่เป็นพิษ ได้มาตรฐาน NEC (Europran Norms Electrical Certificated)
รายละเอียดสินค้า
- Rate Voltage : DC : 125V AC : 250V
- Maximun Current : 15(8) A15(8) A
- Frequency : 50-60 HZ.
- Operating temperature : 50 C MAX
- Protecting Grade : PI68
- Switch angle : + 45 Degree
- Dimensions : 81x131x41.5 mm.
- Weight : 0.73 kg.
- Specific weight : 0.561
- Max.depth level : 1 BAR (10 METRE)
- Housing : Non-toxic Polypropylene
- Colouring : Non-toxic
- Output Cable : PVC 3x1 (2 METRE)
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c SUMOTO square float switch model FLO1
Features
- Float switch is used to control the water level in the water tank. or water storage system
- For use within buildings, houses, condos, rooms, various places
- This float switch is made of non-toxic Poly propyene (PP) material that meets the standards.
general properties
1. The contact of the microswitch can withstand the maximum current of 15 amperes.2. Use with electrical system 220 volts 50 cycles3. Can be directly connected to the water pump For water pumps less than 2.0 horsepower, if wanting to control the motor of water pumps more than 2.0 horsepower Or use 380 volts, 50 cycles, 3 phases, should be connected through the magnetic contactor circuit.4. The sealing system of FLO-1 (HOUSING) has a special sealing system. To ensure that the water does not enter the float.5. The weight is used to set the length of the wire from the terminal of the float so that it can swing up and down properly to control the work of the pump according to the high and low water level as needed6. FLO-1 is made of poly propylene (PP) material that is non-toxic and meets NEC standards (Europran Norms Electrical Certificated).
product details
- Rate Voltage : DC : 125V AC : 250V
- Maximun Current : 15(8) A15(8) A
- Frequency : 50-60 HZ.
- Operating temperature : 50 C MAX
- Protecting Grade : PI68
- Switch angle : + 45 Degree
- Dimensions : 81x131x41.5 mm.
- Weight : 0.73 kg.
- Specific weight : 0.561
- Max.depth level : 1 BAR (10 METRE)
- Housing : Non-toxic Polypropylene
- Colouring : Non-toxic
- Output Cable : PVC 3x1 (2 METRE)
