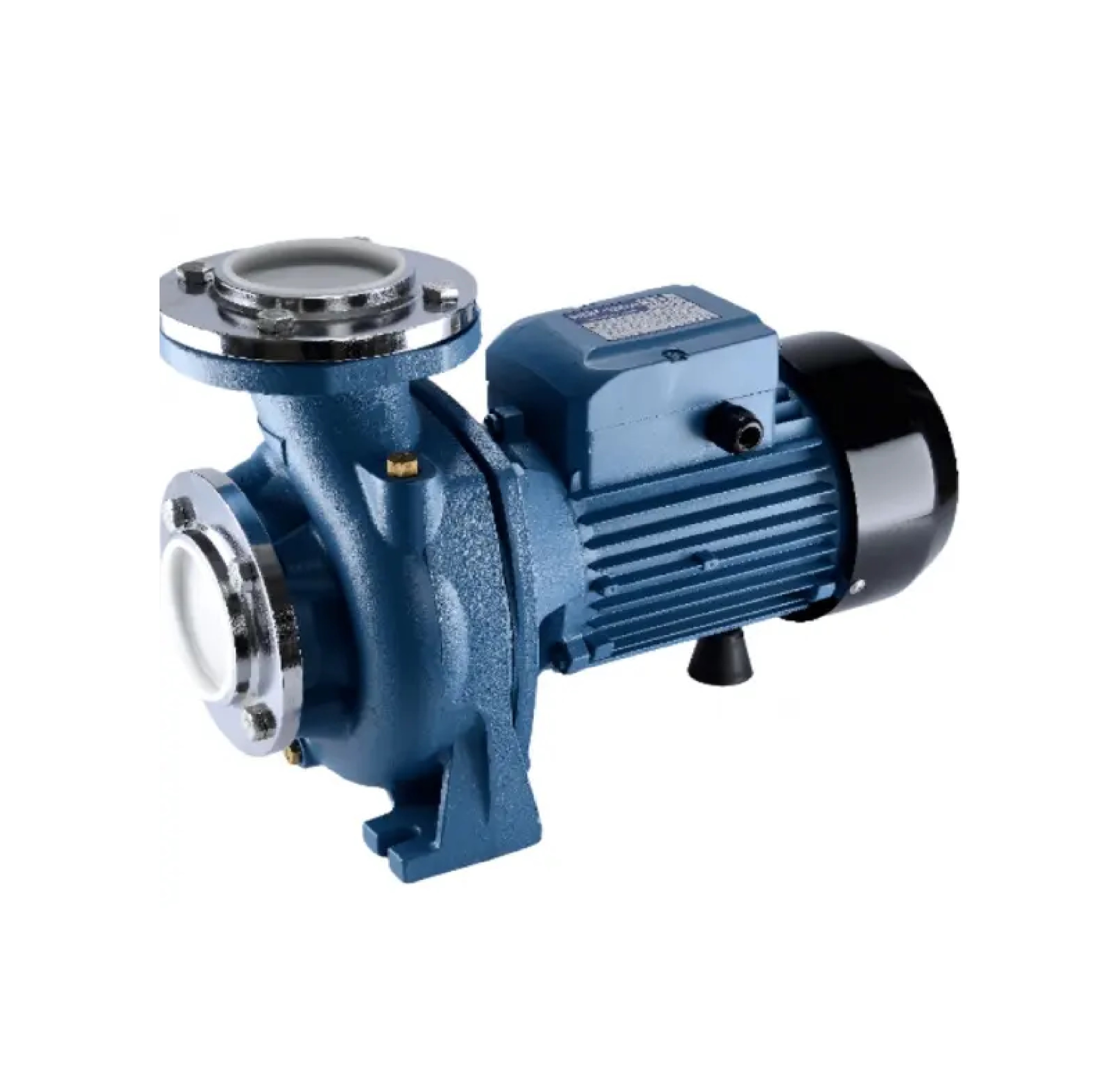

SAXON ปั้มหอยโข่ง 3Hp 3x3 รุ่น SX-HNF-130A
SAXON ปั้มหอยโข่ง 3Hp 3x3 รุ่น SX-HNF-130A
คุณสมบัติเด่น
- เสื้อปั้มผลิตจาก เหล็กหล่อ ทนทานแข็งแรง
- มอเตอร์ขดลวด ทองแดง 100%
- ใบพัด นิ้ว ทองเหลืองนิ้ว ทำให้น้ำไม่เป็นสนิม
- ตลับลูกปืน ที่มีคุณภาพ NSK มาตรฐานประเทศญี่ปุ่น
คุณสมบัติทั่วไป
- เหมาะสำหรับงานเกษตรหรือการลำเลียงน้ำแนวราบ แรงส่งปานกลาง ปริมาณน้ำมาก 150-1050 L/min
รายละเอียดสินค้า
- กำลังไฟ 2200 วัตต์
- กำลังแรงม้า 3 HP
- ปริมาณน้ำที่สูบได้ 1050 ลิตร
- แรงส่งสูงสุด 18 เมตร -ระยะดูดลึกไม่เกิน 9 เมตร
- ขนาดท่อน้ำเข้า-ออก 3นิ้วx 3นิ้ว
- Capacitor 55
วัสดุ
เหล็กหล่อ
แรงดันไฟฟ้า
220
กระแสไฟฟ้า (Operating Current)
-1
กำลังไฟฟ้า(Power Consumption)
2200
ระยะดูด(เมตร)
9
ระยะส่ง(เมตร)
18
ขนาดท่อส่ง(นิ้ว)
3
ปริมาณน้ำสูงสุด(ลิตร/นาที)
1050
การติดตั้ง
- ติดตั้งฟุตวาล์วที่ปลายท่อทางน้ำดูด และควรติดตั้งเช็ควาล์วระหว่างท่อส่งน้ำ
ข้อควรระวังในการใช้งาน
- ขณะปั้มทำงานต้องมีน้ำไหลผ่านตลอด ไม่ควรใช้ปั้มน้ำต่อเนื่องนานเกิน 8 ชั่วโมง/ครั้ง -หลีกเลี่ยงการโดนน้ำหรือฝนโดยตรง
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c SAXON Centrifugal Pump 3Hp 3x3 Model SX-HNF-130A
Features
- The pump housing is made of cast iron, durable and strong.
- 100% copper winding motor
- Propeller Finger Brass Finger make the water not rust
- Bearings with NSK quality, Japanese standards.
general properties
- Suitable for agricultural work or horizontal water conveying. Medium pressure, large water volume 150-1050 L/min
product details
- Power 2200 watts
- Horsepower 3 HP
- The amount of water that can be pumped is 1050 liters.
- Maximum transmission force 18 meters - Suction depth up to 9 meters
- Water inlet-outlet size 3 inches x 3 inches
- Capacitor 55
material
cast iron
voltage
220
Operating Current
-1
Power Consumption
2200
Suction distance (m)
9
Transmission distance (meters)
18
Pipe size (inches)
3
Maximum water volume (liters/minute)
1050
installation
- Install the foot valve at the end of the suction pipe. And should install a check valve between the water pipes.
Precautions for use
- While the pump is working, there must be water flowing through it all the time. Do not use the water pump continuously for more than 8 hours/time. - Avoid direct contact with water or rain.
