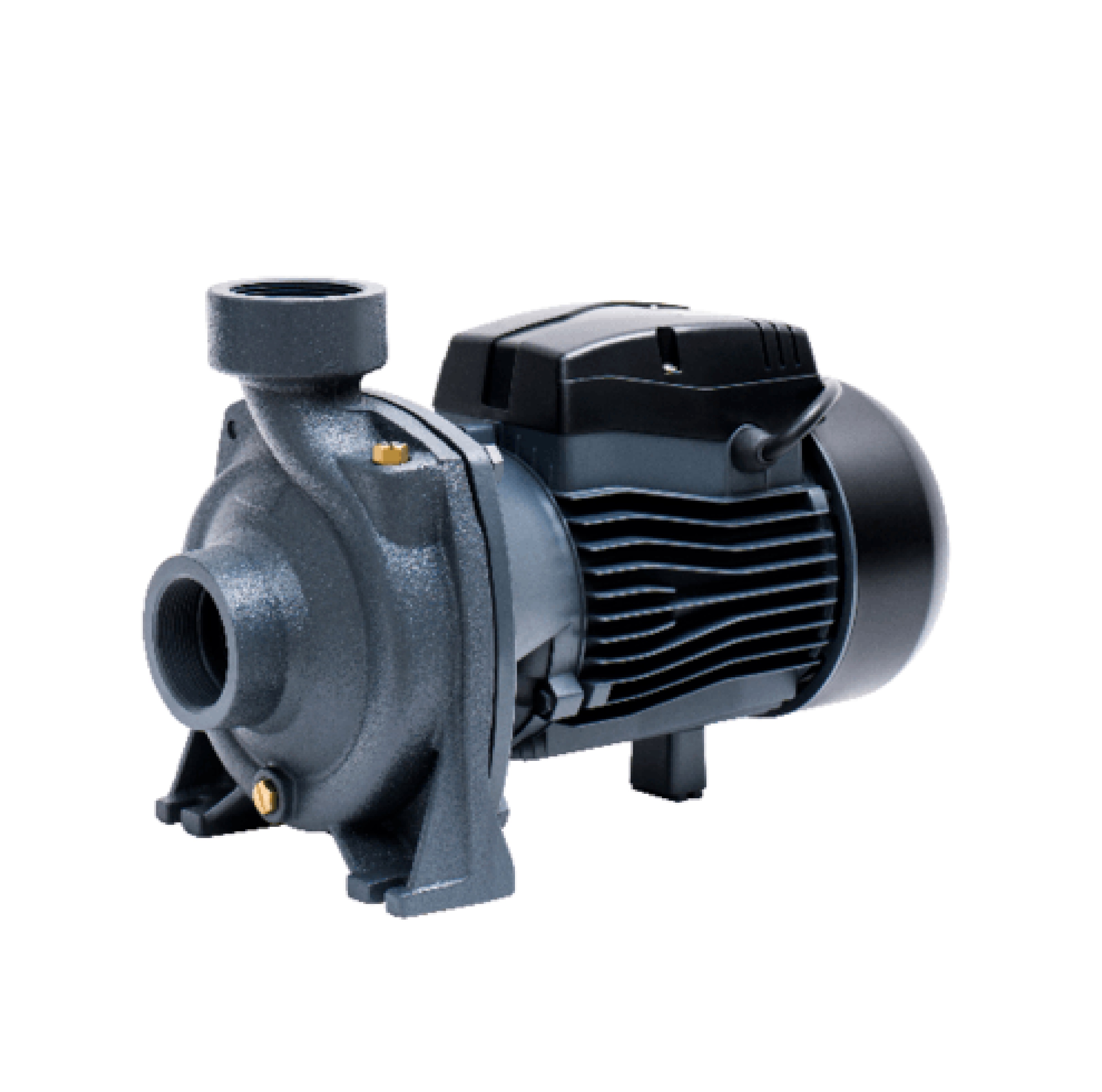

SUMOTO ปั๊มหอยโข่งชนิดน้ำมากส่งสูงปานกลาง 2Hp รุ่น HFM/5AM

Features

• There is a system to stop working when the motor is overheated.
•  medium high delivery give a large amount of water
• Pump housing made of cast iron
• Used to send water up to the water tank with an electric float control
• Used to increase the pressure of water or assemble into an automatic set.
• The impeller and cover are made of brass, never rust.
• There is a motor protection system.
• The water impeller is a closed wide slit impeller.
• The motor shaft is made of stainless steel.

general properties

Suitable for delivering water to water storage tanks on buildings and for use in agriculture.

product details

2 inch delivery pipe

Motor power 2.0 hp

Voltage 220 volts

500 liters of water per minute

Deliver water up to 22 meters

voltage

Operating Current

Power Consumption

Suction distance (m)

Transmission distance (meters)

Pipe size (inches)

Maximum water volume (liters/minute)

Precautions for use

• The size of the water pump should be selected to suit the nature of use.
• Avoid installing pumps outdoors. The pump must be full of water all the time.
• The suction side must have a foot valve or check valve.
• Avoid the use of pumping oil. chemicals and avoid using flexible hoses or hoses for suction lines.
• The installation site should be stable and strong.
• Do not exceed the efficiency of the pump.
