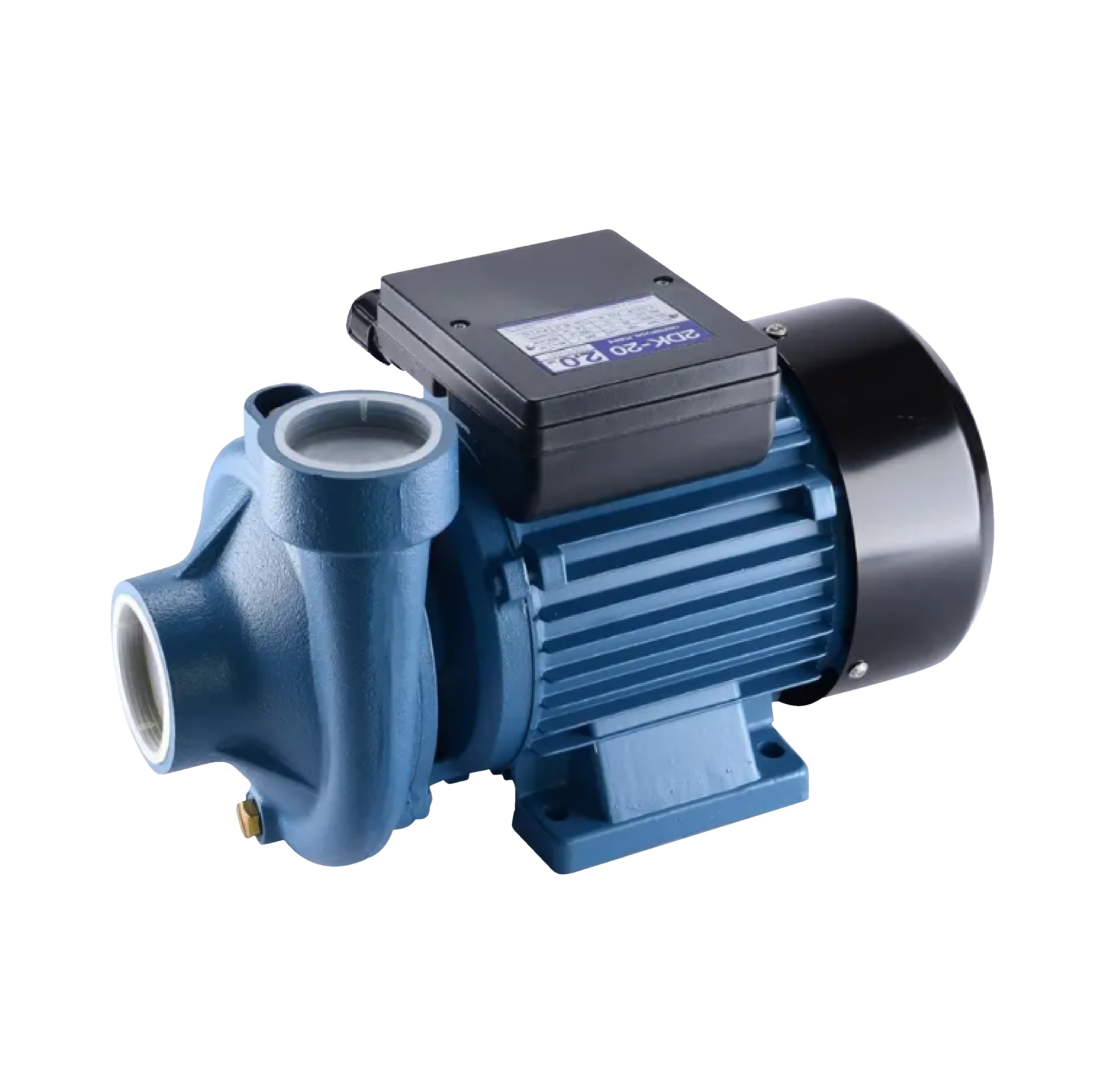

SAXON ปั๊มหอยโข่ง 2HP รุ่น SX-2DK-20
SAXON ปั๊มหอยโข่ง 2HP รุ่น SX-2DK-20
คุณสมบัติเด่น
- เสื้อปั้มผลิตจาก เหล็กหล่อ ทนทานแข็งแรง
- มอเตอร์ขดลวด ทองแดง 100%
- ใบพัด นิ้ว ทองเหลืองนิ้ว ทำให้น้ำไม่เป็นสนิม
- ตลับลูกปืน ที่มีคุณภาพ NSK มาตรฐานประเทศญี่ปุ่น
คุณสมบัติทั่วไป
- เหมาะสำหรับใช้งานปริมาณน้านกลาง 25-500 L/min แรงดันน้ำสูง ขนาดท่อเข้าออก 2 นิ้ว
รายละเอียดสินค้า
- กำลังไฟ 1500 วัตต์
- กำลังแรงม้า 2 HP
- ปริมาณน้ำที่สูบได้ 500 ลิตร
- แรงส่งสูงสุด 20 เมตร
- ระยะดูดลึกไม่เกิน 9 เมตร
- ขนาดท่อน้ำเข้า-ออก 2นิ้วx 2นิ้ว
- Capacitor 40
วัสดุ
เหล็กหล่อ
แรงดันไฟฟ้า
220
กระแสไฟฟ้า (Operating Current)
0
กำลังไฟฟ้า(Power Consumption)
1500
ระยะดูด(เมตร)
9
ระยะส่ง(เมตร)
20
ขนาดท่อส่ง(นิ้ว)
2
ปริมาณน้ำสูงสุด(ลิตร/นาที)
500
การติดตั้ง
- ติดตั้งฟุตวาล์วที่ปลายท่อทางน้ำดูด และควรติดตั้งเช็ควาล์วระหว่างท่อส่งน้ำ
ข้อควรระวังในการใช้งาน
- ขณะปั้มทำงานต้องมีน้ำไหลผ่านตลอด ไม่ควรใช้ปั้มน้ำต่อเนื่องนานเกิน 8 ชั่วโมง/ครั้ง -หลีกเลี่ยงการโดนน้ำหรือฝนโดยตรง
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c SAXON Centrifugal Pump 2HP Model SX-2DK-20
Features
- The pump housing is made of cast iron, durable and strong.
- 100% copper winding motor
- Propeller Finger Brass Finger make the water not rust
- Bearings with NSK quality, Japanese standards.
general properties
- Suitable for medium water volume 25-500 L/min, high water pressure, inlet and outlet size 2 inches
product details
- Power 1500 watts
- Horsepower 2 HP
- The amount of water that can be pumped is 500 liters.
- Transmission force up to 20 meters
- The suction depth is not more than 9 meters.
- Water pipe size - 2 inches x 2 inches
- Capacitor 40
material
cast iron
voltage
220
Operating Current
0
Power Consumption
1500
Suction distance (m)
9
Transmission distance (meters)
20
Pipe size (inches)
2
Maximum water volume (liters/minute)
500
installation
- Install the foot valve at the end of the suction pipe. And should install a check valve between the water pipes.
Precautions for use
- While the pump is working, there must be water flowing through it all the time. Do not use the water pump continuously for more than 8 hours/time. - Avoid direct contact with water or rain.
