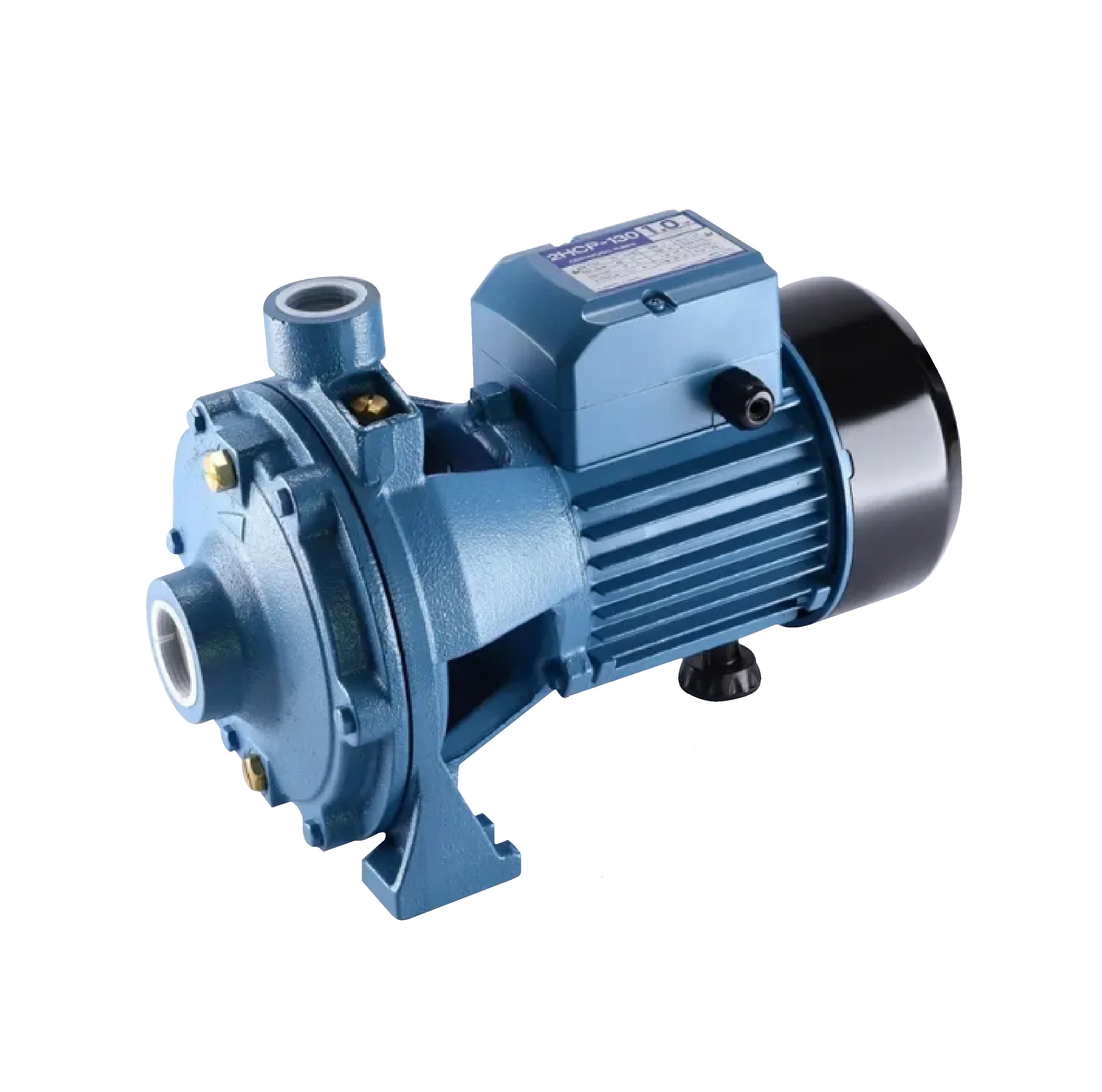

ปั้มหอยโข่ง SX-2HCP-130 1HP 1.1/4นิ้วx1นิ้ว

Features

• 100% pure brass impeller makes the water not rust.
• Use bearings with quality NSK standards from Japan.
• When the machine is working, there is a quiet sound.
• High water pressure 2 impeller pump
• Cast iron body, strong and durable
• 100% copper windings
• 2 impeller pump, high water pressure, suitable for use in industry, water volume 25-75L/min
• 1 year motor warranty
• power 750 watts
• Horse power 1 HP
• The amount of water that can be pumped is 75 liters per minute.
• Transmission force up to 35 meters
• The suction depth is not more than 9 meters.
• Water inlet-outlet size 1 1/4x1
• Capacitor 20
• Install the foot valve at the end of the suction pipe. And should install a check valve between the water pipes.
• While the pump is working, there must be water flowing through it all the time. Do not use the water pump continuously for more than 8 hours/time.
• Avoid direct exposure to water or rain.

general properties

• 2 impeller pump, high water pressure, suitable for use in industry, water volume 25-75L/min

product details

• power 750 watts
• Horse power 1 HP
• The amount of water that can be pumped is 75 liters per minute.
• Transmission force up to 35 meters
• The suction depth is not more than 9 meters.
• Water inlet-outlet size 1 1/4x1
• Capacitor 20

material

voltage

Power Consumption

Suction distance (m)

Transmission distance (meters)

Pipe size (inches)

Maximum water volume (liters/minute)

installation

• Install the foot valve at the end of the suction pipe. And should install a check valve between the water pipes.

Precautions for use

• While the pump is working, there must be water flowing through it all the time. Do not use the water pump continuously for more than 8 hours/time.
• Avoid direct exposure to water or rain.
