SAXON ปั้มหอยโข่ง 1Hp 2x2 รุ่น SX-HNF-128A
SAXON ปั้มหอยโข่ง 1Hp 2x2 รุ่น SX-HNF-128A
คุณสมบัติเด่น
- เสื้อปั้มผลิตจาก เหล็กหล่อ ทนทานแข็งแรง
- มอเตอร์ขดลวด ทองแดง 100%
- ใบพัด นิ้ว ทองเหลืองนิ้ว ทำให้น้ำไม่เป็นสนิม
- ตลับลูกปืน ที่มีคุณภาพ NSK มาตรฐานประเทศญี่ปุ่น
- สายไฟกันน้ำคุณภาพสูง
คุณสมบัติทั่วไป
- เหมาะสำหรับงานเกษตรหรือการลำเลียงน้ำแนวราบ แรงส่งปานกลาง ปริมาณน้ำมาก 150-450 L/min
รายละเอียดสินค้า
- กำลังไฟ 750 วัตต์ -กำลังแรงม้า 1 HP
- ปริมาณน้ำที่สูบได้ 450 ลิตร
- แรงส่งสูงสุด 12 เมตร
- ระยะดูดลึกไม่เกิน 9 เมตร
- ขนาดท่อน้ำเข้า-ออก 2นิ้วx 2นิ้ว
- Capacitor 20
วัสดุ
เหล็กหล่อ
แรงดันไฟฟ้า
220
กระแสไฟฟ้า (Operating Current)
220
กำลังไฟฟ้า(Power Consumption)
750
ระยะดูด(เมตร)
9
ระยะส่ง(เมตร)
12
ขนาดท่อส่ง(นิ้ว)
2
ปริมาณน้ำสูงสุด(ลิตร/นาที)
450
การติดตั้ง
- ติดตั้งฟุตวาล์วที่ปลายท่อทางน้ำดูด และควรติดตั้งเช็ควาล์วระหว่างท่อส่งน้ำ
ข้อควรระวังในการใช้งาน
- ขณะปั้มทำงานต้องมีน้ำไหลผ่านตลอด ไม่ควรใช้ปั้มน้ำต่อเนื่องนานเกิน 8 ชั่วโมง/ครั้ง -หลีกเลี่ยงการโดนน้ำหรือฝนโดยตรง

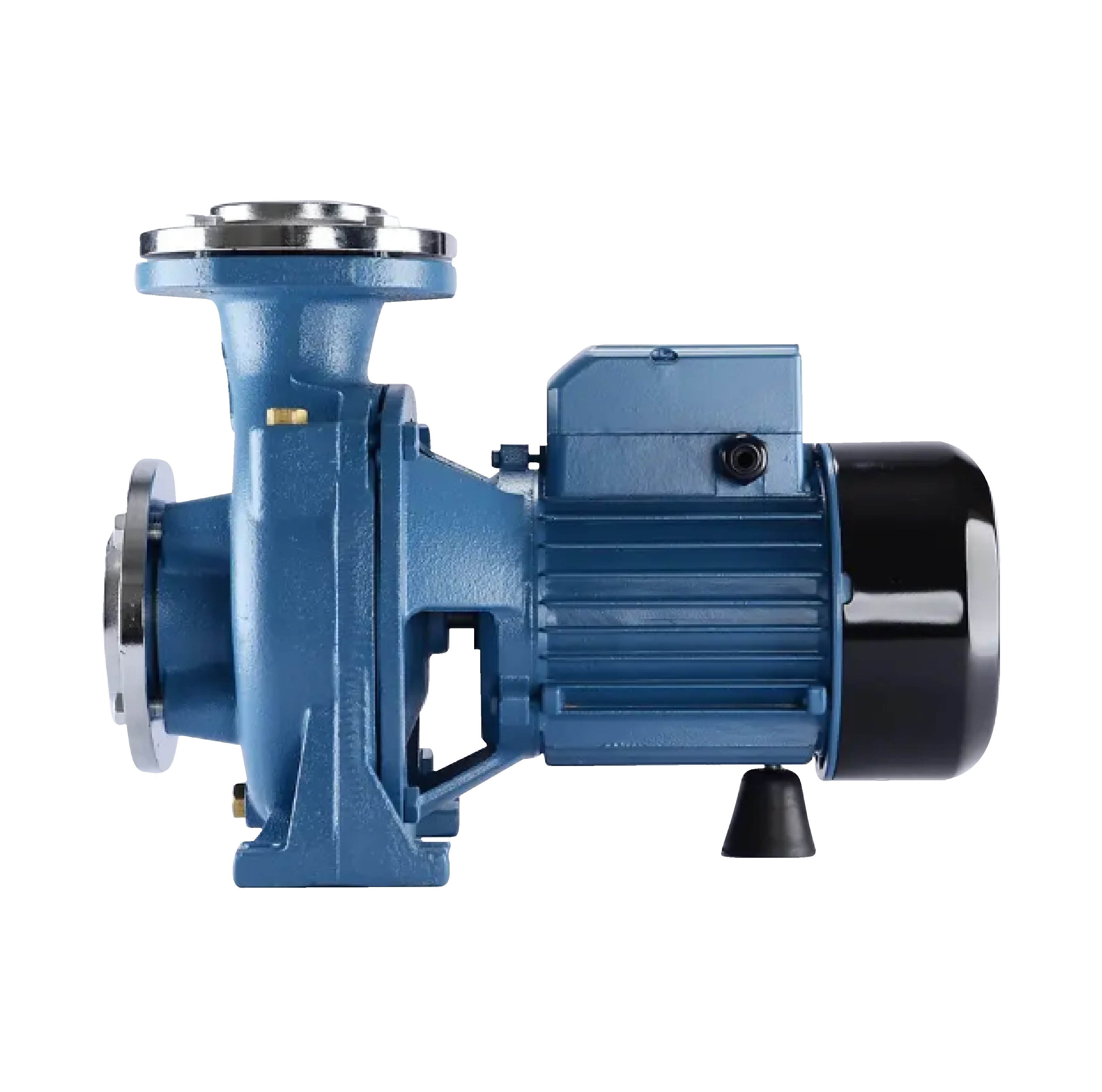

ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c SAXON Centrifugal Pump 1Hp 2x2 Model SX-HNF-128A
Features
- The pump housing is made of cast iron, durable and strong.
- 100% copper winding motor
- Propeller Finger Brass Finger make the water not rust
- Bearings with NSK quality, Japanese standards.
- High quality waterproof cable
general properties
- Suitable for agricultural work or horizontal water conveying. Medium pressure, large water volume 150-450 L/min
product details
- Power 750 watts - Horse power 1 HP
- The amount of water that can be pumped is 450 liters.
- Transmission force up to 12 meters
- The suction depth is not more than 9 meters.
- Water pipe size - 2 inches x 2 inches
- Capacitor 20
material
cast iron
voltage
220
Operating Current
220
Power Consumption
750
Suction distance (m)
9
Transmission distance (meters)
12
Pipe size (inches)
2
Maximum water volume (liters/minute)
450
installation
- Install the foot valve at the end of the suction pipe. And should install a check valve between the water pipes.
Precautions for use
- While the pump is working, there must be water flowing through it all the time. Do not use the water pump continuously for more than 8 hours/time. - Avoid direct contact with water or rain.
