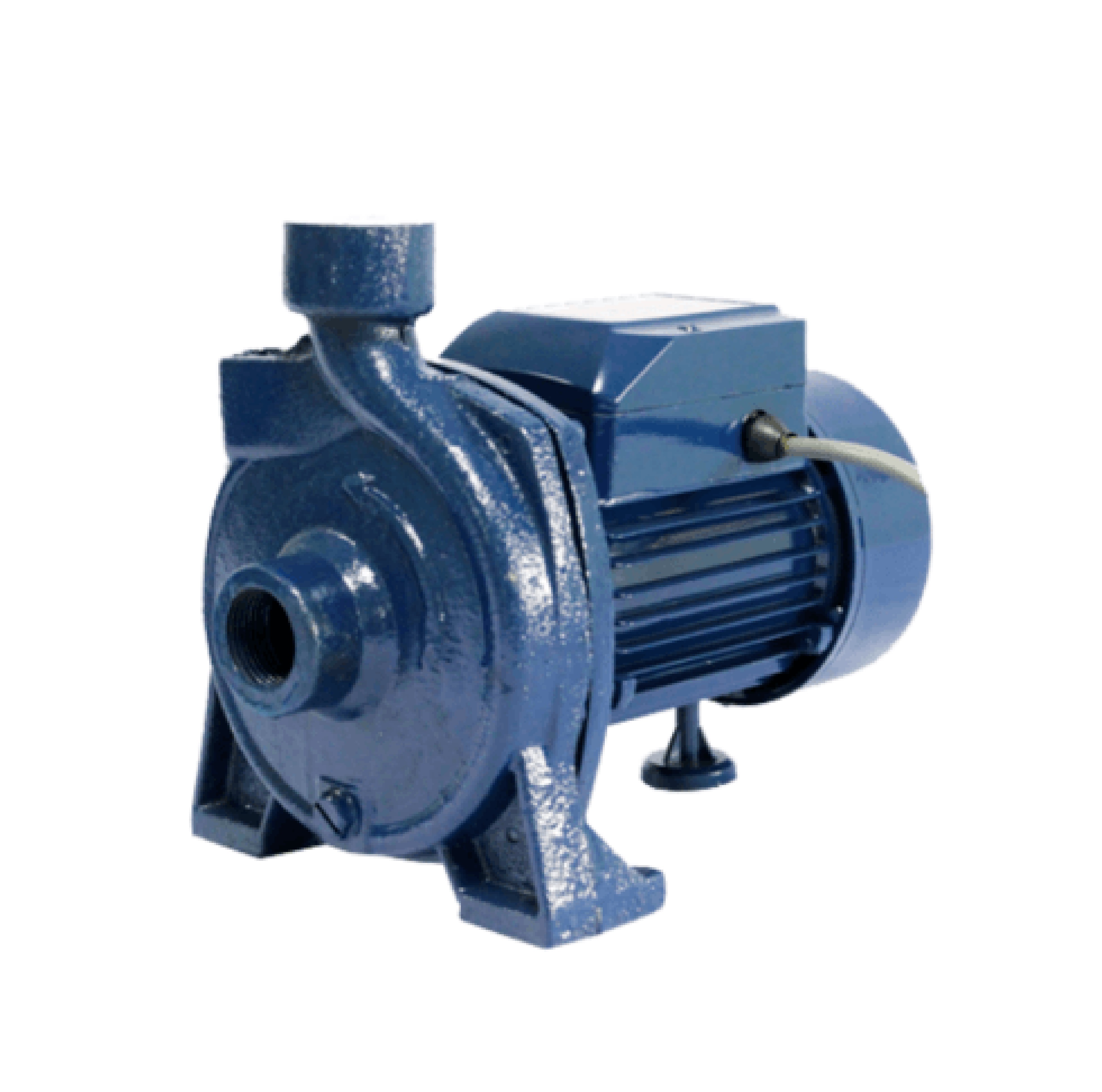

SAXON ปั๊มหอยโข่ง 3Hp ท่อ 2x2 รุ่น SX-HCPF-80 สีน้ำเงิน
SAXON ปั๊มหอยโข่ง 3Hp ท่อ 2x2 รุ่น SX-HCPF-80 สีน้ำเงิน
คุณสมบัติเด่น
- เสื้อปั้มผลิตจาก เหล็กหล่อ ทนทานแข็งแรง
- มอเตอร์ขดลวด ทองแดง 100%
- ใบพัด นิ้ว ทองเหลืองนิ้ว ทำให้น้ำไม่เป็นสนิม
- ตลับลูกปืน ที่มีคุณภาพ NSK มาตรฐานประเทศญี่ปุ่น
คุณสมบัติทั่วไป
- เหมาะสำหรับใช้งานสปริงเกอ์ หรืองานส่งน้ำอาคารสูง ปริมาณน้ำ 50-550L/min
รายละเอียดสินค้า
- กำลังไฟ 2200 วัตต์
- กำลังแรงม้า 3 HP
- ปริมาณน้ำที่สูบได้ 550 ลิตร
- แรงส่งสูงสุด 30 เมตร
- ระยะดูดลึกไม่เกิน 9 เมตร
- ขนาดท่อน้ำเข้า-ออก 2นิ้วx 2นิ้ว
- Capacitor 55
วัสดุ
เหล็กหล่อ
แรงดันไฟฟ้า
220
กระแสไฟฟ้า (Operating Current)
0
กำลังไฟฟ้า(Power Consumption)
2200
ระยะดูด(เมตร)
9
ระยะส่ง(เมตร)
30
ขนาดท่อส่ง(นิ้ว)
2
ปริมาณน้ำสูงสุด(ลิตร/นาที)
550
การติดตั้ง
- ติดตั้งฟุตวาล์วที่ปลายท่อทางน้ำดูด และควรติดตั้งเช็ควาล์วระหว่างท่อส่งน้ำ
ข้อควรระวังในการใช้งาน
ขณะปั้มทำงานต้องมีน้ำไหลผ่านตลอด ไม่ควรใช้ปั้มน้ำต่อเนื่องนานเกิน 8 ชั่วโมง/ครั้ง -หลีกเลี่ยงการโดนน้ำหรือฝนโดยตรง
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c SAXON Centrifugal Pump 3Hp Pipe 2x2 Model SX-HCPF-80 Blue
Features
- The pump housing is made of cast iron, durable and strong.
- 100% copper winding motor
- Propeller Finger Brass Finger make the water not rust
- Bearings with NSK quality, Japanese standards.
general properties
- Suitable for use with sprinklers. or water delivery work for high-rise buildings, water volume 50-550L/min
product details
- Power 2200 watts
- Horsepower 3 HP
- The amount of water that can be pumped is 550 liters.
- Transmission force up to 30 meters
- The suction depth is not more than 9 meters.
- Water pipe size - 2 inches x 2 inches
- Capacitor 55
material
cast iron
voltage
220
Operating Current
0
Power Consumption
2200
Suction distance (m)
9
Transmission distance (meters)
30
Pipe size (inches)
2
Maximum water volume (liters/minute)
550
installation
- Install the foot valve at the end of the suction pipe. And should install a check valve between the water pipes.
Precautions for use
While the pump is working, there must be water flowing through it all the time. Do not use the water pump continuously for more than 8 hours/time. - Avoid direct contact with water or rain.
