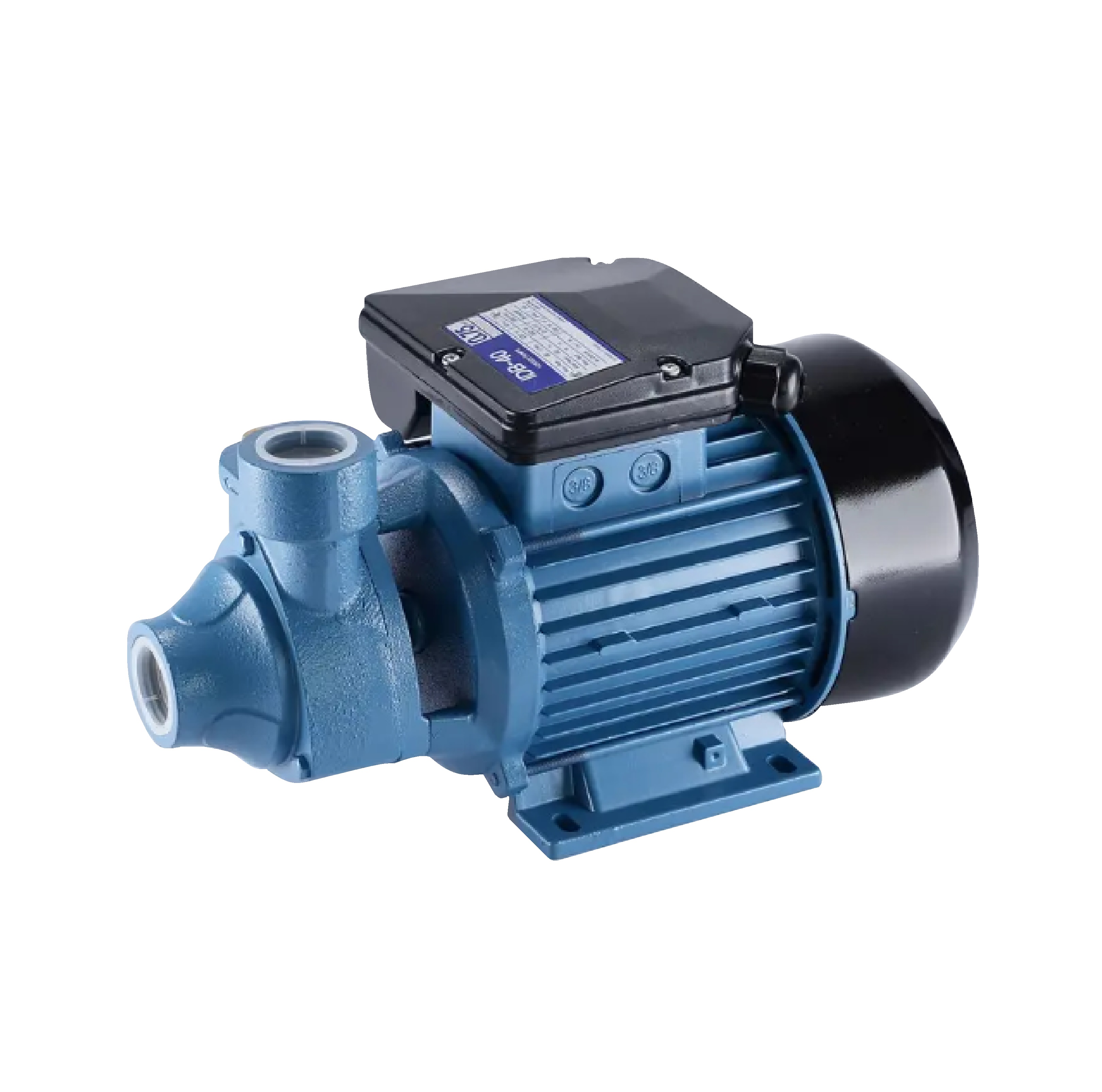

SAXON ปั๊มหอยโข่ง 0.75HP รุ่น SX-IDB40
SAXON ปั๊มหอยโข่ง 0.75HP รุ่น SX-IDB40
คุณสมบัติเด่น
- เสื้อปั๊มผลิตจาก นิ้วเหล็กหล่อนิ้ว แข็งแรงทนทานมีน้ำหนัก
- มอเตอร์ขดลวดทองแดง 100%
- ตลับลูกปืน NSK มาตรฐานญี่ปุ่น
- ใบพัด นิ้ว ทองเหลืองนิ้ว ทำให้น้ำไม่เป็นสนิม
- ใช้แกนเพลา สแตนเลส 304
คุณสมบัติทั่วไป
- เหมาะสำหรับใช้งานทั่วไปแรงดันน้ำปานกลาง 5-45 L/min
รายละเอียดสินค้า
- กำลังไฟ 550 วัตต์
- กำลังแรงม้า 0.75 HP
- ปริมาณน้ำที่สูบได้ 45 ลิตร
- แรงส่งสูงสุด 55 เมตร
- ระยะดูดลึกไม่เกิน 9 เมตร
- ขนาดท่อน้ำเข้า-ออก 1นิ้วx 1นิ้ว
- Capacitor 16
วัสดุ
เหล็กหล่อ
แรงดันไฟฟ้า
220
กระแสไฟฟ้า (Operating Current)
0
กำลังไฟฟ้า(Power Consumption)
550
ระยะดูด(เมตร)
9
ระยะส่ง(เมตร)
55
ขนาดท่อส่ง(นิ้ว)
1
ปริมาณน้ำสูงสุด(ลิตร/นาที)
45
การติดตั้ง
- ติดตั้งฟุตวาล์วที่ปลายท่อทางน้ำดูด และควรติดตั้งเช็ควาล์วระหว่างท่อส่งน้ำ
ข้อควรระวังในการใช้งาน
- ขณะปั้มทำงานต้องมีน้ำไหลผ่านตลอด ไม่ควรใช้ปั้มน้ำต่อเนื่องนานเกิน 8 ชั่วโมง/ครั้ง
- หลีกเลี่ยงการโดนน้ำหรือฝนโดยตรง
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c SAXON Centrifugal Pump 0.75HP Model SX-IDB40
Features
- Pump jacket made from cast iron finger Strong and durable with weight
- 100% copper winding motor
- Japanese standard NSK bearings
- Propeller Finger Brass Finger make the water not rust
- Using 304 stainless steel shaft shaft
general properties
- Suitable for general use, medium water pressure 5-45 L/min.
product details
- Power 550 watts
- Horsepower 0.75 HP
- The amount of water that can be pumped is 45 liters.
- Transmission force up to 55 meters
- The suction depth is not more than 9 meters.
- Water inlet-outlet size 1 inch x 1 inch
- Capacitor 16
material
cast iron
voltage
220
Operating Current
0
Power Consumption
550
Suction distance (m)
9
Transmission distance (meters)
55
Pipe size (inches)
1
Maximum water volume (liters/minute)
45
installation
- Install the foot valve at the end of the suction pipe. And should install a check valve between the water pipes.
Precautions for use
- While the pump is working, there must be water flowing through it all the time. Do not use the water pump continuously for more than 8 hours/time.
- Avoid direct exposure to water or rain.
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c
