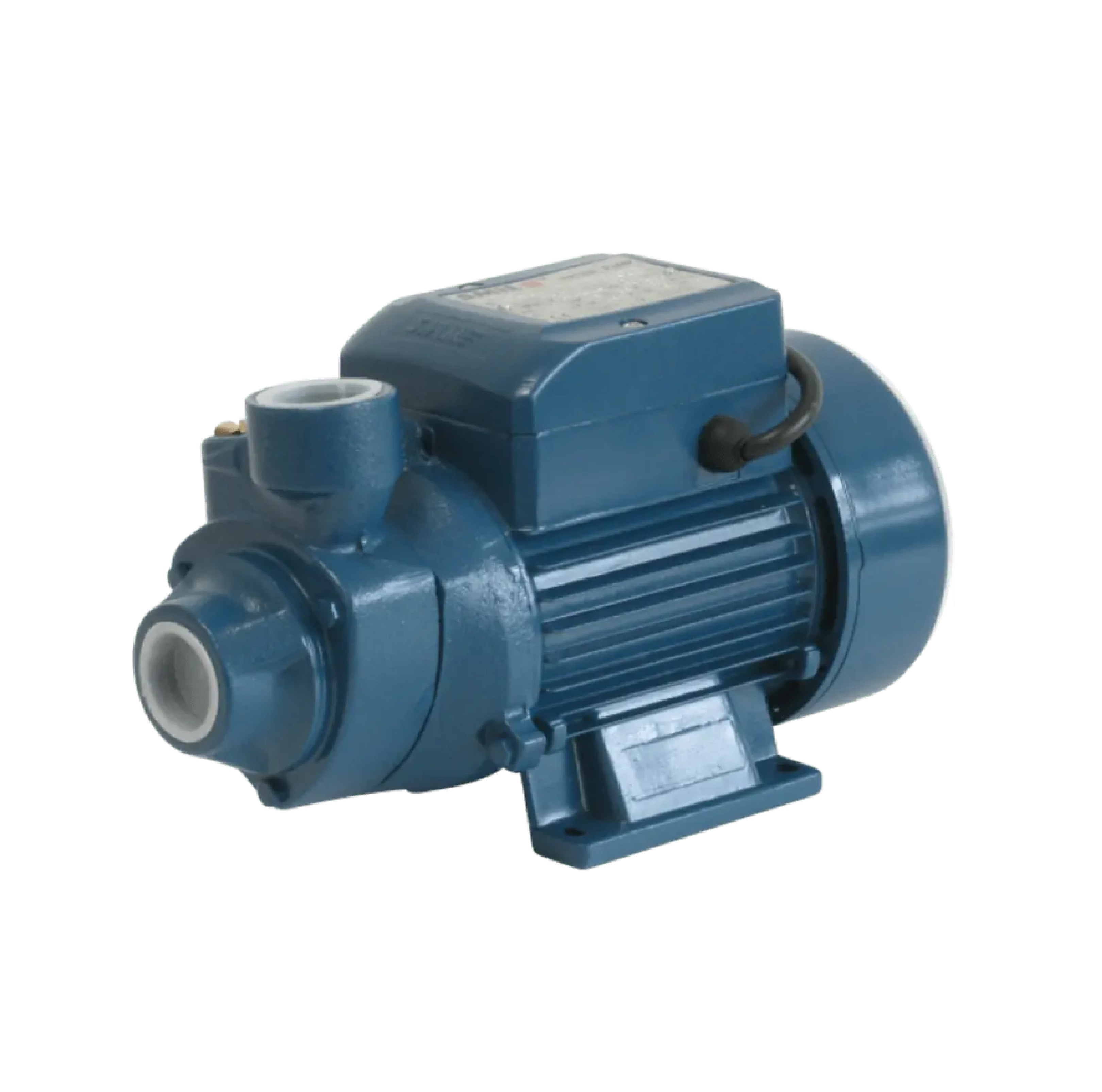

SMILE ปั๊มหอยโข่ง 0.5Hp 220V รุ่น SM-SKP60-1
SMILE ปั๊มหอยโข่ง 0.5Hp 220V รุ่น SM-SKP60-1
คุณสมบัติเด่น
- ใบพัดและฝาครอบทำจากทองเหลืองไม่เป็นสนิม
- เสื้อปั๊มผลิตจากเหล็กหล่อ
- มีระบบป้องกันมอเตอร์ไหม้
- ใบพัดน้ำเป็นแบบใบพัดเฟือง
- เพลามอเตอร์ผลิตจากสแตนเลส
- แมคคานิคอลซ๊ลผลิตจาก CERAMIC
รายละเอียดสินค้า
- ใช้ส่งน้ำขึ้นถังเก็บน้ำโดยมีลูกลอยไฟฟ้าควบคุม
- ระยะดูด ( สูงสุด ) ไม่เกิน 8 เมตร
- ระยะส่งสูง 35 เมตร
- ขนาดท่อน้ำเข้า 1 นิ้ว ท่อน้ำออก 1 นิ้ว
- ใช้เพิ่มแรงดันของน้ำหรือประกอบเป็นชุดอัตโนมัติ
แรงดันไฟฟ้า
200
กระแสไฟฟ้า (Operating Current)
1.7
กำลังไฟฟ้า(Power Consumption)
375
ระยะดูด(เมตร)
ไม่เกิน 8 เมตร
ระยะส่ง(เมตร)
35
ขนาดท่อส่ง(นิ้ว)
1
ปริมาณน้ำสูงสุด(ลิตร/นาที)
35
ข้อควรระวังในการใช้งาน
- ติดตั้งปั๊มน้ำให้อยู่ใกล้กับแหล่งน้ำมากที่สุด
- ติดตั้งปั๊มน้ำให้อยู่บนฐานอย่างมั่นคง รองด้วยยางระหว่างแท่นเครื่องกับฐาน เพื่อลดการสั่นสะเทือน
- ตรวจสอบปั๊มน้ำ ก่อนใช้งานทุกครั้ง เพื่อให้การใช้งานนั้นปลอยภัย
- หลีกเลี่ยงการติดตั้งปั๊มน้ำกลางแจ้ง
- ตัวปั๊มจะต้องมีน้ำผ่านตลอดเวลา
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c SMILE Centrifugal Pump 0.5Hp 220V Model SM-SKP60-1
Features
- The impeller and cover are made of brass, not rust.
- Pump housing made of cast iron
- There is a motor protection system.
- The water propeller is a gear propeller.
- The motor shaft is made of stainless steel.
- Mechanical seal made from CERAMIC
product details
- Used to send water up to the water tank with an electric float control
- Suction distance (maximum) not more than 8 meters
- Transmission distance up to 35 meters
- Inlet pipe size 1 inch, outlet pipe 1 inch
- Used to increase the pressure of water or assemble into an automatic set.
voltage
200
Operating Current
1.7
Power Consumption
375
Suction distance (m)
no more than 8 meters
Transmission distance (meters)
35
Pipe size (inches)
1
Maximum water volume (liters/minute)
35
Precautions for use
- Install the water pump as close to the water source as possible.
- Install the water pump firmly on the base. Secondary with rubber between the platform and the base. to reduce vibration
- Check the water pump. before every use in order to use it safely
- Avoid installing pumps outdoors.
- The pump must have water through all the time.
