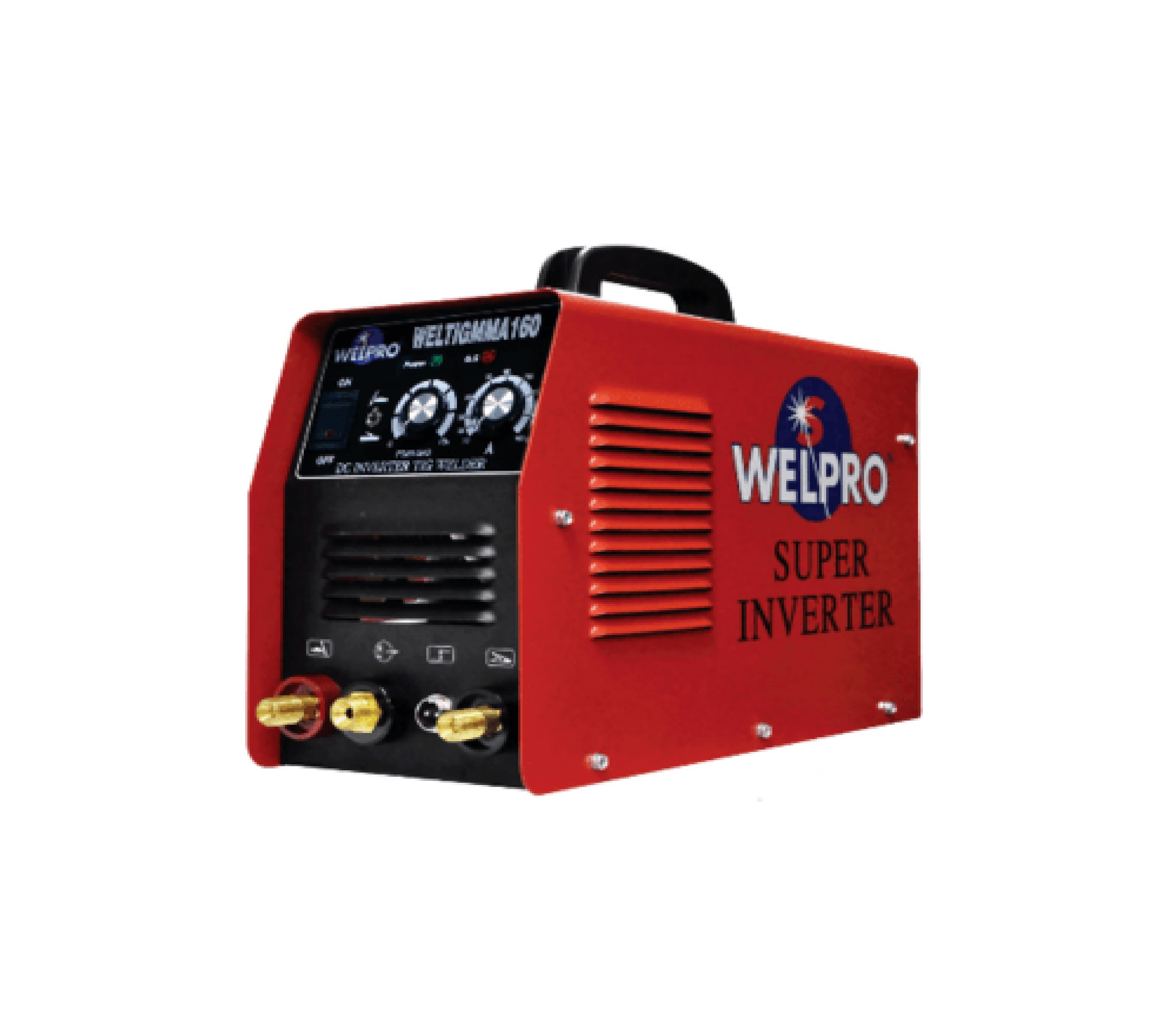

เครื่องเชื่อม INVERTER 2 ระบบ WELTIG MMA 160 WELPRO
เครื่องเชื่อม INVERTER 2 ระบบ WELTIG MMA 160 WELPRO
คุณสมบัติเด่น
- กระแสเชื่อมเต็มตามสเป็ค 160A การเชื่อมต่อเนื่องเสถียรคงที่ Smooth & Stable
- มีระบบ HF START ช่วยในการเชื่อมที่ง่ายขึ้น
- กระแสเชื่อม TIG (DC) 10-160A / MMA 10-140A
- มีน้ำหนักเครื่องเบา 8 kg. เคลื่อนย้ายสะดวกต่อการใช้งาน
- สายเชื่อมและสายดินเป็นทองแดงแท้ นำกระแสเชื่อมได้ดี Smooth & Stable กว่าสายอลูมิเนียมทั่วไป
- สินค้าควบคุมภาพ QC 100% ก่อนส่งมอบให้ลูกค้า
- มีอะไหล่ทุกชิ้นพร้อมบริการหลังการขาย
- ตัวเครื่องมีการรับประกันถึง 3 ปีเต็ม
คุณสมบัติทั่วไป
ใช้เชื่อมชิ้นงานเหล็ก สแตนเลส (เหมาะกับการเชื่อมงานสแตนเลสเป็นหลัก)น้ำหนักเบา เคลื่อนย้ายง่ายเป็นระบบอินเวอร์เตอร์ เชื่อมง่าย ประหยัดไฟ
รายละเอียดสินค้า
กระแสไฟเชื่อม 10-160Aความสามารถในการทำงานของเครื่อง(Duty Cycle) 60%แรงดันไฟ 220V+/-10%กระแสไฟเข้าสูงสุด 4.4 KVAความถี่ 50 Hz/60 Hzแรงดันไฟขณะไร้ภาระ 42 Vสัมประสิทธิทางไฟฟ้า 0.93ประสิทธิภาพ 85%ระดับความเป็นฉนวน Fขนาดลวดเชื่อมTIG 1.6-2.4 mm.ขนาดลวดเชื่อมMMA 2.6-3.2 mm.นำ้หนักตัวเครื่อง 8 kg.2 ระบบ TIG DC / MMA
- ตัวเครื่องสามารถใช้งานได้ทั้ง TIG DC และ MMA ในเครื่องเดียวกันครอบคลุมทุกการใช้งาน
Post Gas Function
- ช่วยปล่อยแก๊สอาร์กอนให้ออกมาต่อเนื่องหลังจากสิ้นสุดการเชื่อม เพื่อป้องกันการเกิดจุดบกพร่องที่แนวเชื่อม
กระแสเชื่อม Output Current Amp
- มีความเสถียรของกระแสเชื่อมต่อเนื่องคงที่ดีไม่มีสะดุด Smooth & Stable
การเชื่อมต่อเนื่อง Duty Cycle Test
- การทำงานต่อเนื่อง Duty cycle 60% ที่กระแสเชื่อมสูงสุด
วัสดุที่สามารถเชื่อมได้ Material Welding
- งานเชื่อม TIG DC 160A สามารถเชื่อมเหล็ก สเตนเลส ทองแดง ทองเหลือง ไทเทเนียม เงิน
ตัวอย่างชิ้นงานของระบบ TIG
- เหล็ก/Steel , สเตนเลส/Stainless
วัสดุ
เหล็ก
การติดตั้ง
1.ต่อสายเชื่อม สายดินเข้ากับตู้เชื่อมให้แน่นและพันเทปจุดต่อสายให้เรียบร้อยถ้ามี2.กรณีใช้งานเชื่อมทิกติดตั้งถังก๊าซอาร์ก้อน โดยถังก๊าซจะต้องมีการจับยึดเพื่อป้องกันการล้มของถัง3.ต่อสายก๊าซเข้ากับตัวเครื่องเชื่อมและรัดด้วยเข็มขัดรัดสาย4.เช็คจุดรั่วตามจุดต่อต่างๆและสายก๊าซ5.ควรวางเครื่องเชื่อมให้ทุกๆด้านห่างจากกาแพงหรือสิ่งขวางกั้นไม่น้อยกว่า 30 ซม.
ข้อควรระวังในการใช้งาน
1.ตรวจเช็คการทํางานของพัดลมระบายความร้อน อย่างน้อยสัปดาห์ละครั้ง 2.ตรวจเช็คสภาพสายไฟเข้าเครื่อง,สายปืนเชื่อม,สายเชื่อม,สายดิน,และขั้วต่อสายต่างๆอย่างน้อย สัปดาห์ละครั้ง 3.เป่าทําความสะอาดเครื่องด้วยลมอัดที่สะอาดที่ปราศจากความชื้น,นํ้า,และฝุ่นละออง ทุก ๆ อาทิตย์ หรือน้อยกว่านั้น ซึ่งขึ้นอยู่กับสภาพแวดล้อมที่เครื่องใช้งาน 4.ห้ามใช้อัดลมที่มีความแรงมากเกินกวา 5 Bar ในการทําความสะอาดเครื่อง 5.หากไม่มีการใช้เครื่องเป็นเวลานาน ควรเก็บในกล่องที่มิดชิดและเก็บในบริเวณที่ไม่อับชื้น ุ6.แสงเชื่อม,ความร้อนและควันเชื่อมอาจจะทําให้เกิดไฟไหม้ได้ 7.ควรสวมหน้ากากและอุปกรณ์safetyเพื่อความปลอดภัยของผู้ใช้งาน 8.ควรศึกษาคู่มือก่อนการใช้งาน
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c INVERTER WELDING MACHINE 2 WELTIG MMA 160 WELPRO
Features
- Full welding current according to specification 160A, stable connection, Smooth & Stable
- There is a HF START system to help make welding easier.
- TIG welding current (DC) 10-160A / MMA 10-140A
- It has a light weight of 8 kg. Easy to move and use.
- Connecting wires and ground wires are pure copper. Leads the welding current well, Smooth & Stable than general aluminum wires.
- 100% QC image control products before delivery to customers.
- There are all spare parts with after-sales service.
- The machine has a full 3 year warranty.
general properties
Used for welding stainless steel workpieces (mainly suitable for welding stainless steel work),light weight, easy to move.It is inverter system, easy to connect, save electricity.
product details
Welding current 10-160AWorking capacity (Duty Cycle) 60%Voltage 220V+/-10%Maximum input current 4.4 KVAFrequency 50 Hz/60 HzNo-load voltage 42 VCoefficient Electrical 0.93Efficiency 85%Insulation level FTIG welding wire size 1.6-2.4 mm.MMA welding wire size 2.6-3.2 mm.Machine weight 8 kg.2 TIG DC/MMA systems
- The machine can be used for both TIG DC and MMA in the same machine covering all applications.
Post Gas Function
- Allows continuous release of argon gas after welding ends. to prevent defects at the welding line
Output Current Amp
- The stability of the continuous welding current is good without interruption Smooth & Stable
Continuous Connection Duty Cycle Test
- Continuous operation Duty cycle 60% at maximum welding current
Materials that can be welded Material Welding
- Welding TIG DC 160A can weld steel, stainless steel, copper, brass, titanium, silver.
Examples of workpieces of the TIG system
- Iron/Steel , Stainless/Stainless
material
iron
installation
1. connect cable Secure the ground wire to the junction box and tape the connection points, if applicable.2. In case of using TIG welding, install an argon gas cylinder. The gas cylinder must be fixed to prevent the tank from falling.3. Connect the gas line to the welding machine and fasten it with a belt.4. Check the leak points at various connection points and gas lines.5. The welding machine should be placed on all sides at least 30 cm. away from the wall or obstruction.
Precautions for use
1. Check operation of the cooling fan. at least once a week 2. Check the condition of the power cord, welding gun cable, welding cable, ground cable, and connectors at least. once a week 3. Blow clean the unit with clean compressed air free of moisture, water, and dust every week or less. which depends on the environment in which the machine is used 4. Do not use more than 5 Bar compressed air to clean the machine. 5. If the machine is not used for a long time Should be stored in a closed box and stored in a place that is not damp.6. Welding light, heat and welding fumes may cause a fire. 7. Should wear a mask and safety equipment for the safety of users. 8. Should study the manual before use.
