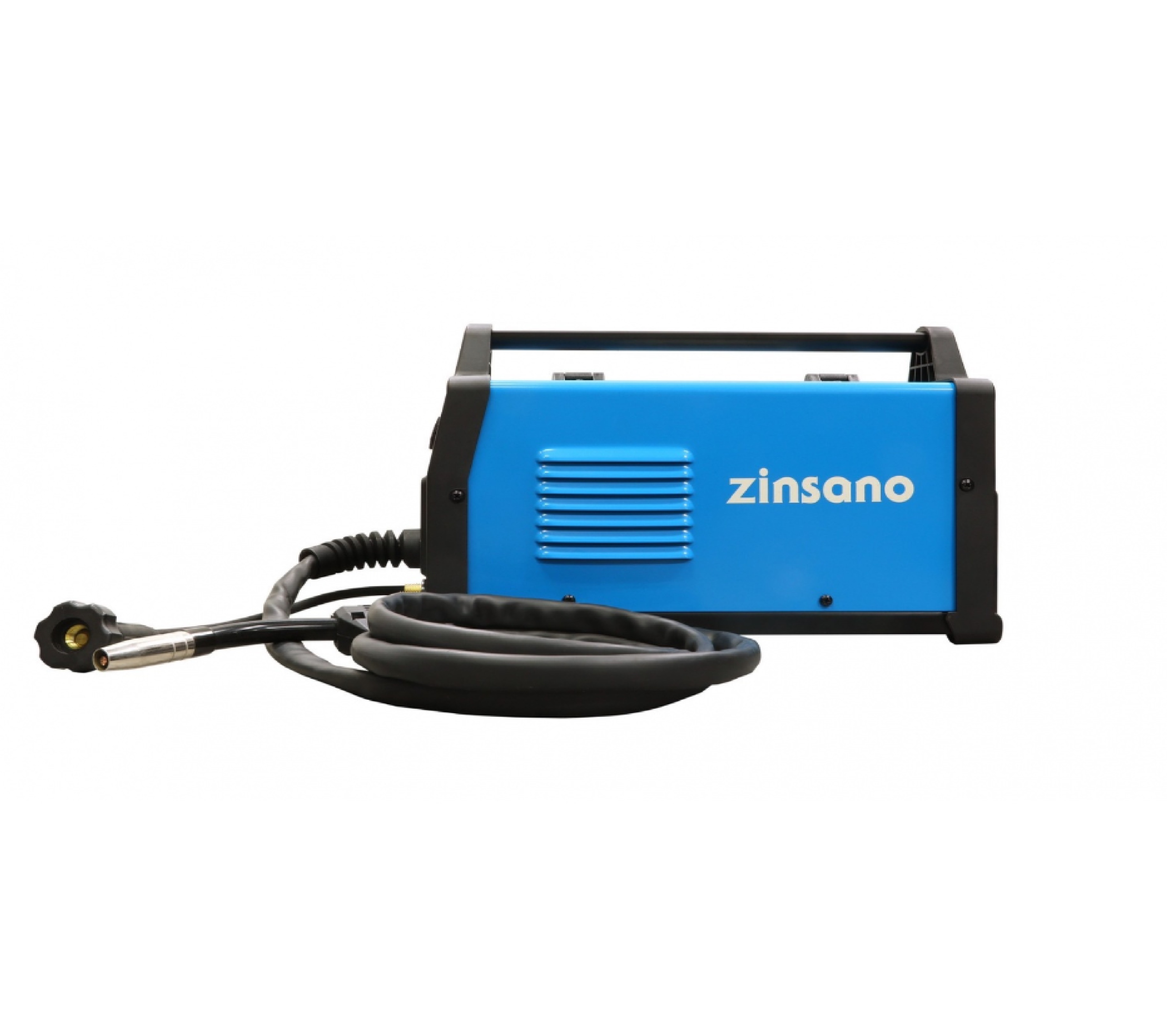

ZINSANO เครื่องเชื่อมอินเวอร์เตอร์ CO2 รุ่น ZMIG140 (พร้อมสายเชื่อมมิกในตัว)
ZINSANO เครื่องเชื่อมอินเวอร์เตอร์ CO2 รุ่น ZMIG140 (พร้อมสายเชื่อมมิกในตัว)
คุณสมบัติเด่น
- กระแสเชื่อมเต็มตามสเป็ค 140A เชื่อมต่อเนื่องเสถียรคงที่ Smooth & Stable
- สายเชื่อม MIG ติดตั้งมาพร้อมตัวเครื่องสะดวกต่อการใช้งาน
- ใช้งานได้ 2 ระบบในเครื่องเดียว MIG NO GAS / MIG CO2 และ MMA
- กระแสเชื่อม MIG 20-140A / MMA 20-120A
- ตัวเครื่องสามารถใส่ม้วนลวดได้สูงสุด 1 kg
- ตัวเครื่องขนาดเล็กกะทัดรัดเหมาะกับงานบนที่สูง
- Handle อลูมิเนียมแข็งแรงมีน้ำหนักเบา
- มี Thermosensor Protection/O.C เตือน หรือตัดการทำงานของเครื่อง เมื่อเครื่องมีความร้อนสูง
- สินค้าควบคุมภาพ QC 100% ก่อนส่งมอบให้ลูกค้า
- มีอะไหล่ทุกชิ้นพร้อมบริการหลังการขาย
- ตัวเครื่องมีการรับประกันถึง 2 ปีเต็ม
คุณสมบัติทั่วไป
1.กระแสไฟเชื่อม MIG20-140A , MMA20-120A2.ความสามารถในการทำงานของเครื่อง(Duty Cycle) 20%3.แรงดันไฟ 220V+/-10%4.กระแสไฟเข้าสูงสุด MMA5.94KVA/27A , MIG6.93KVA/31.5A5.ความถี่ 50Hz/60Hz6.แรงดันไฟขณะไร้ภาระ 60V7.สัมประสิทธิทางไฟฟ้า 0.858.ระดับความเป็นฉนวน F 9.ขนาดลวดเชื่อมMIG 0.8-1.0 mm.ขนาดลวดเชื่อมMMA 2.6-3.2 mm.10.น้ำหนักเครื่อง 7 kg 1.Input Power : 220+/-15% Volt 2.Frequency : 50/60 Hz 3. Max Input Capacity : MMA5.94KVA/27A , MIG6.93KVA/31.5A 4.No-Load Voltage : 60 Volt 5.Output Current Range : MIG20-140A , MMA20-120A 6. Duty Cycle : 20% 7.Power Factor : 0.85 PF 8.Insulation Class : F 9.Diameter of Rod : MIG 0.8-1.0 mm MMA 2.6-3.2 mm.10.Net Weight (kg.) 7 kg.
รายละเอียดสินค้า
1.ให้กระแสเชื่อมที่สูงเต็มตาม SPEC2.มีความเสถียรของกระแสเชื่อมต่อเนื่องคงที่ดีไม่มีสะดุด3.สามารถใช้งานได้ 2 ระบบในเครื่องเดียวกัน MIG/MMA และใช้แหล่งจ่ายไฟฟ้า 1 เฟส 220V4.การเชื่อม MIG สามารถเดินแนวเชื่อมได้อย่างต่อเนื่องได้ตลอดเวลา โดยที่ไม่ต้องทิ้งเศษลวดเชื่อมซึ่งไม่เหมือนการเชื่อมแบบ MMA ที่ต้องมีการเปลี่ยนลวดเชื่อมและทิ้งเศษลวดเชื่อมเป็นจำนวนมากๆ5.การเชื่อม MIG สามารถเชื่อมเหล็ก สแตนเลสได้ โดยการเปลี่ยนลวดเชื่อมให้ตรงกับวัสดุที่จะทำการเชื่อม6.ชุดสายเชื่อม MMA ทองแดงแท้ เมื่อเทียบกับท้องตลาด ใช้สายอลูมิเนียม7.สามารถสลับขั้ว MMA ด้านหน้าเครื่องให้เชื่อมงานหนาและงานบางได้8.สินค้าควบคุมภาพ QC 100% ก่อนส่งมอบให้ลูกค้า9.รับประกันตัวเครื่องนานสูงสุด 2 ปี (ตามเงื่อนไขบริษัทฯกำหนด)
วัสดุ
วัสดุคุณภาพสูง
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c ZINSANO CO2 inverter welding machine model ZMIG140 (with built-in MIG welding
Features
- Full welding current according to specification 140A, stable connection, Smooth & Stable
- MIG welding cable is installed with the machine, convenient to use.
- Works in 2 systems in one machine MIG NO GAS / MIG CO2 and MMA
- Welding current MIG 20-140A / MMA 20-120A
- The machine can put up to 1 kg of wire reels.
- The machine is small and compact, suitable for work at height.
- Handle is strong and lightweight aluminum.
- There is Thermosensor Protection/OC to warn or cut off the machine. When the machine is overheated
- 100% QC image control products before delivery to customers.
- There are all spare parts with after-sales service.
- The machine has a full 2 year warranty.
general properties
1. Welding current MIG20-140A , MMA20-120A2. Working capacity of the machine (Duty Cycle) 20%3. Voltage 220V+/-10%4. Maximum input current MMA5.94KVA/27A , MIG6.93KVA/31.5A5. Frequency 50Hz/60Hz6. No-load voltage 60V7. Electrical coefficient 0.85
8.Insulation degree F 9. Wire size MIG 0.8- 1.0 mm.Welding wire size MMA 2.6-3.2 mm.10. Machine weight 7 kg 1.Input Power : 220+/-15% Volt 2.Frequency : 50/60 Hz 3. Max Input Capacity : MMA5.94KVA/27A , MIG6.93KVA/31.5A 4.No-Load Voltage : 60 Volt 5.Output Current Range : MIG20-140A , MMA20-120A 6. Duty Cycle : 20% 7.Power Factor : 0.85 PF 8.Insulation Class : F 9.Diameter of Rod : MIG 0.8-1.0 mm MMA 2.6-3.2 mm.10.Net Weight (kg.) 7 kg.
product details
1. Provide high welding current according to SPEC2. Stability of continuous welding current, good constant without interruption3. Can use 2 systems in the same machine MIG / MMA and use a single-phase 220V power supply4. MIG welding can continue to weld continuously at any time.5. MIG welding can connect stainless steel by changing the welding wire . corresponds to the material to be welded6. A set of genuine copper MMA welding cables compared to the market use aluminum cable7. Able to switch MMA terminals in front of the machine to weld thick and thin jobs.8. 100% QC image control products before delivery to customers.9. Warranty for the machine for a maximum of 2 years (according to the conditions set by the company)
material
high quality material
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c
