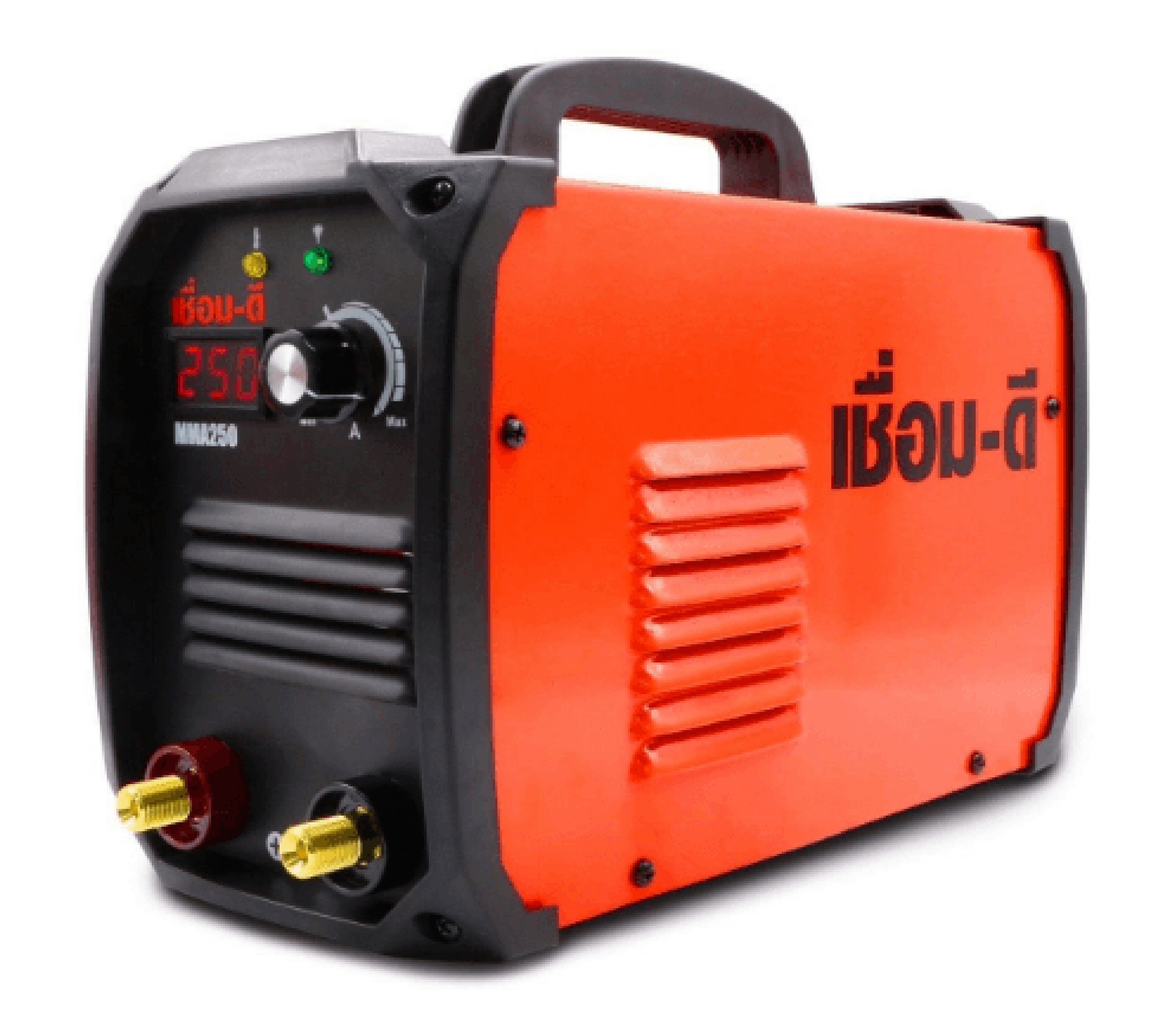

เชื่อมดี เครื่องเชื่อมไฟฟ้าอินเวอร์เตอร์ MMA 120 แอมป์ รุ่น MMA250
เชื่อมดี เครื่องเชื่อมไฟฟ้าอินเวอร์เตอร์ MMA 120 แอมป์ รุ่น MMA250
คุณสมบัติทั่วไป
1.ใช้เชื่อม ต่อโลหะเหล็กทั่วไป ใช้แหล่งจ่ายไฟ 1 เฟส 230V 2. ระบบ MMA 3. 1 ph 230 Volt ±10% / 50/60Hz
รายละเอียดสินค้า
Model MMA250 แรงดันไฟฟ้าขาเข้า/ความถี่ (โวลท์) Inverter - Single Phase Input Voltage, Frequency (Volt, Hz) 1 ph 230 Volt ±10% / 50/60Hz กระแสเชื่อมต่ำสุดและสูงสุด (แอมป์) 120A Output Current Range (Min-Max) (Amp) ความสามารถในการทำงาน 35% Duty Cycle กรแสไฟเข้าสูงสุด 21.5A Rate Input Power (KVA/A) แรงดันไฟขณะไร้ภาระ 65V. No-Load Voltage สัมประสิทธิทางไฟฟ้า 0.65 PF Power factor ขนาดลวดเชื่อม 2.6-3.2 mm. Electrode Diameter ระดับความเป็นฉนวน F Insulation class ระดับป้องกันสิ่งแปลกปลอม IP21S Protection class ขนาดเครื่อง (ไม่รวม Handle) 15.5 x 34.5 x 21 cm. Dimensions dont include Handle (WxLxH) (mm.) ขนาดเครื่อง (รวม Handle) 15.5 x 34.5 x 26 cm. Dimensions include Handle (WxLxH) (mm.) น้ำหนักเฉพาะเครื่อง 4.37 kgs. Net Weight (kg.) การรับประกัน 1 year Warranty ขนาดกล่อง 27x43x34.5 cm. Dimensions Cartons (cm.) น้ำหนักรวมกล่อง 5.5 kgs. Gross Weight (kg.)
การใช้งาน
1.เปิดสวิทซ์หน้าเครื่อง ไฟแสดงการทํางานของเครื่องจะติด และพัดลมระบายความร้อนจะหมุน 2.ปรับกระแสเชื่อมตามชนิดและความหนาของชิ้นงาน หรือ ตามความต้องการของช่างเชื่อม ซึ่งสามารถดูได้จากตารางสําหรับอ้างอิงในการตั้งกระแสเชื่อม
ข้อควรระวังในการใช้งาน
1.ตรวจเช็คการทํางานของพัดลมระบายความร้อน อย่างน้อยสัปดาห์ละครั้ง 2.ตรวจเช็คสภาพสายไฟเข้าเครื่อง,สายปืนเชื่อม,สายเชื่อม,สายดิน,และขั้วต่อสายต่างๆอย่างน้อย สัปดาห์ละครั้ง 3.เป่าทําความสะอาดเครื่องด้วยลมอัดที่สะอาดที่ปราศจากความชื้น,นํ้า,และฝุ่นละออง ทุก ๆ อาทิตย์ หรือน้อยกว่านั้น ซึ่งขึ้นอยู่กับสภาพแวดล้อมที่เครื่องใช้งาน 4.ห้ามใช้อัดลมที่มีความแรงมากเกินกวา 5 Bar ในการทําความสะอาดเครื่อง 5.หากไม่มีการใช้เครื่องเป็นเวลานาน ควรเก็บในกล่องที่มิดชิดและเก็บในบริเวณที่ไม่อับชื้น ุ 6.แสงเชื่อม,ความร้อนและควันเชื่อมอาจจะทําให้เกิดไฟไหม้ได้ 7.ควรสวมหน้ากากและอุปกรณ์safetyเพื่อความปลอดภัยของผู้ใช้งาน 8.ควรศึกษาคู่มือก่อนการใช้งาน
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c Weld well Inverter Electric Welding Machine MMA 120 Amp Model MMA250
general properties
1. Used to connect general ferrous metals. Use single-phase power supply 230V 2. MMA system 3. 1 ph 230 Volt ±10% / 50/60Hz
product details
Model MMA250 Input Voltage/Frequency (Volt) Inverter - Single Phase Input Voltage, Frequency (Volt, Hz) 1 ph 230 Volt ±10% / 50/60Hz Min and Max Welding Current (Amp) 120A Output Current Range (Min-Max) (Amp) Working capacity 35% Duty Cycle Maximum input current 21.5A Rate Input Power (KVA/A) No-load voltage 65V. No-Load Voltage Electrical coefficient 0.65 PF Power factor Welding electrode size 2.6-3.2 mm. Electrode Diameter Insulation class F Insulation class IP21S Protection class Dimensions (excluding Handle) 15.5 x 34.5 x 21 cm. Dimensions dont include Handle (WxLxH) ( mm.) Machine dimensions (including Handle) 15.5 x 34.5 x 26 cm. Dimensions include Handle (WxLxH) (mm.) Machine weight 4.37 kgs. Net Weight (kg.) Warranty 1 year Warranty Box size 27x43x34.5 cm.Dimensions Cartons (cm.) Gross Weight 5.5 kgs. Gross Weight (kg.)
Usage
1. Turn on the switch in front of the machine. The power indicator of the machine will be on. and the cooling fan will rotate 2. Adjust the welding current according to the type and thickness of the work piece or according to the welder's requirements. Which can be seen in the table for reference in setting the welding current.
Precautions for use
1. Check operation of the cooling fan. at least once a week 2. Check the condition of the power cord, welding gun cable, welding cable, ground cable, and connectors at least. once a week 3. Blow clean the unit with clean compressed air free of moisture, water, and dust every week or less. which depends on the environment in which the machine is used 4. Do not use more than 5 Bar compressed air to clean the machine. 5. If the machine is not used for a long time Should be stored in a closed box and stored in a place that is not damp. 6. Welding light, heat and welding fumes may cause a fire. 7. Should wear a mask and safety equipment for the safety of users. 8. Should study the manual before use.
ราคาขึ้นอยู่กับจำนวนและโปรโมชั่น โปรดเลือกที่ต้องการ ได้ที่ กด ติดต่อสอบถามราคา 083-236-9493 หรือ LINE : @idh4523c
