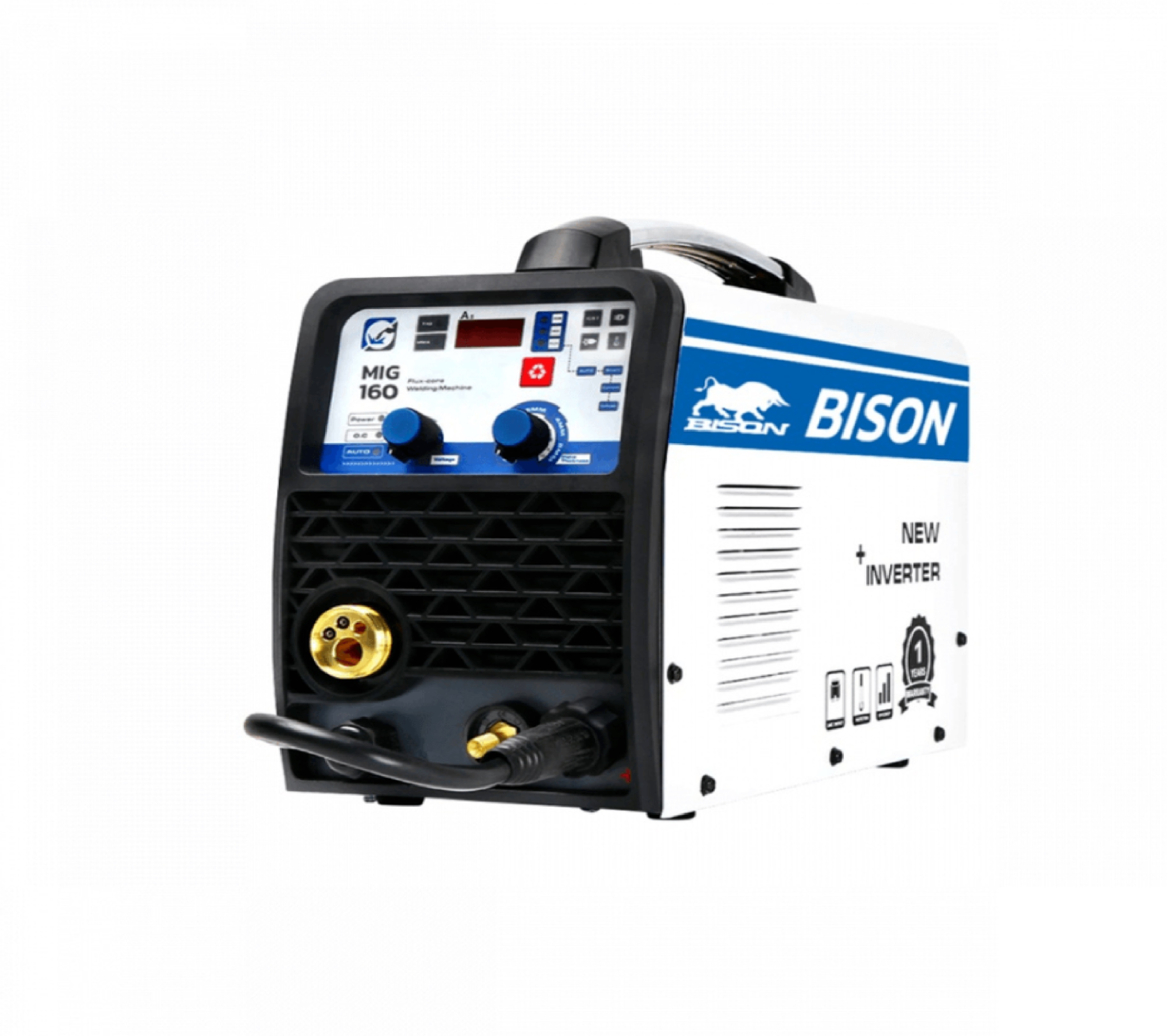

BISON เครื่องเชื่อม3ระบบ รุ่นMIG-160 MIG/MMA/LIFT TIG

Features

• Voltage at rest (V) 220V
• Frequency (Hz) 50/60
• Power input (KW) MIG 5/LIFTTIG 3.7/MMA 6
• Input current (A) MIG 23/LIFTTIG 17/MMA 27
• Effective input current(A) MIG 14.5/LIFTTIG 10.8/MMA 17
• Trust current (A) 20-160
• No-load voltage(V) 55V
• Efficiency(%) 70
• Working capacity(40%) MIG 160A/22V ,LIFTTIG 160A/16.4V,MMA 160A/26.4V
• Working capacity(100%) MIG 101A/19V ,LIFTTIG 101A/14V,MMA 101A/24V
• Electrical coefficient 0.93
• Protection class IP21S
• Insulation class F

general properties

• Can be used to weld steel, stainless steel, MMA system
• Welding incense can be used for MIG welding.
• Non-gas wire and CO2 gas can be used. Can contain wire from 1-5 kilos, LIFT TIG system
• Tungsten and filler wire can be used for welding. Argon gas is used in the process.

material

Usage

•  Install the machine in a stable position. avoid exposure to sunlight
•  Connect electricity to the machine. Think of setting up the device correctly for use and checking the wiring connections to be tight at every point.
•  Adjust the current according to the size of the work piece.

MMA mode

• Install the MMA cable at the positive pole and install the ground cable at the negative pole.
• Adjust the current according to the size of the workpiece and the size of the wire.

MIG mode

• MIG CO2 welding process
• Wire installation in MIG welding process C02 MIG wire installation At the front of the machine, install a short joint cable at the positive terminal and ground cable at the negative terminal.
• Connect the C02 gas cylinder to the pressure gauge and after welding with a gas line.
• Install the wire into the machine. Insert the wire out of the front of the machine.
• Adjust the current according to the size of the workpiece. according to the instructions of

MIG FLUXCORE MODE

• Wire installation in FLUXCORE MIG welding process Install the MIG wire at the front of the machine, install the short joint cable at the negative pole and install the ground cable at the positive pole.
• Install the wire into the machine. Insert the wire out of the front of the machine.
• Adjust the current according to the size of the workpiece and the size of the lead. according to the instructions of

LIFT TIG mode

• Wire installation in the I IFI TIG welding process Install the I IFI IIG wire at the negative pole and tickle the ground wire at the positive pole.
• Connect the argon cylinder to the pressure gauge and after welding with a gas line.
• Sharpen the tungsten tip according to your needs and suitability for work.
• Adjust the current according to the size of the work piece.
• Adjust the gas flow rate according to the type and thickness of the work piece.

Precautions for use

Caution

• Check the size of the roller to suit the wire size and should not adjust the wire lock too tight.

how to maintain

• Check the operation of the cooling fan.
• Check the condition of the power cord, ground wire, connection wire and connectors.
• If the machine is not used for a long time Should be stored in an area that is not damp.
