Sikacryl®-620 Fire กาวยาแนวรอยต่อทนไฟประเภทอะคริลิก สำหรับรอยต่อเชิงเส้นในผนังและพื้น
Sikacryl®-620 Fireกาวยาแนวรอยต่อทนไฟประเภทอะคริลิก สำหรับรอยต่อเชิงเส้นในผนังและพื้นSikacryl®-620 Fire เป็นวัสดุยาแนวรอยต่อทนไฟ ส่วนประกอบเดียว สูตรน้ำ
- ทนไฟสูงสุด 4 ชั่วโมง ตามมาตรฐาน EN 1366-4
- ความสามารถในการทำงานดีเยี่ยม
- ยึดเกาะได้ดีกับพื้นผิวที่หลากหลาย
การใช้งานSikacryl®-620 Fire ออกแบบมาสำหรับต้านทานไฟบริเวณเชื่อมต่อ ของรอยต่อบนพื้นผิวที่มีรูพรุนและไม่มีรูพรุนคุณลักษณะ/คุณประโยชน์
- ทนไฟสูงสุด 4 ชั่วโมง ตามมาตรฐาน EN 1366-4
- ความสามารถในการทำงานดีเยี่ยม
- ยึดเกาะได้ดีกับพื้นผิวที่หลากหลาย
- ผลิตภัณฑ์สูตรน้ำ
- สามารถทาสีทับได้
บรรจุภัณฑ์300 มล. หลอดแข็ง600 มล. หลอดนิ่มลักษณะของสินค้า/สี : สีขาว สีเทาการรับรองมาตรฐาน ข้อมูลด้านสิ่งแวดล้อม
- ประเภทการปล่อย VOC GEV-Emicode EC1PLUS ใบอนุญาตเลขที่ 7145/20.100.00
- เป็นไปตามมาตรฐาน LEED v4 EQc 2: วัสดุที่มีสารระเหยต่ำ
การรับรองมาตรฐาน
- CE Marking and Declaration of Performance based on European Technical Assessment ETA 20/1115. ETA issued on the basis of EAD 350141-00-1106:2017 – Fire Stopping and Fire Sealing Products – Linear Joint and Gap Seals.
- Classification report reaction to fire EN 13501-1, Sikacryl®-620 Fire, Exova, Report No. 356703
- Classification report resistance to fire EN 13501-2, Sikacryl®-620 Fire, Exova, Report No. 343247B
- Fire testing BS 476-20, Sikacryl®-620 Fire, Exova, Report No. 344546A
- Sound transmission ISO 10140-2, Sikacryl®-620 Fire, SRL, Report No. C/22765/T03
- UL Product iQ, XHBN.HW-S-0113 - Joint Systems, System No. HW-S-0113
- IMO Certificate MED D, Sikacryl®-620 Fire, DNV GL SE, No. MEDD00001VA
- IMO Certificate MED B, Sikacryl®-620 Fire, DNV GL SE, No. MEDB00005C6
ข้อมูลผลิตภัณฑ์ส่วนประกอบหลักทางเคมี : กาวอะคลิริกส่วนประกอบเดียวอายุผลิตภัณฑ์ : 24 เดือน นับจากวันที่ผลิต หากจัดเก็บอย่างถูกวิธี ภายในบรรจุภัณฑ์ที่ปิดสนิทและไม่เสียหาย ภายใต้เงื่อนไขที่กำหนดการเก็บรักษา : ควรจัดเก็บในบริเวณที่แห้ง ภายใต้อุณหภูมิระหว่าง 5°C ถึง 25°C ป้องกันจากแสงแดดและความเย็นจัด ความหนาแน่น
| ~1.65 กก./ลิตร |
(ISO 1183-1) |
ข้อมูลทางเทคนิคอุณหภูมิการใช้งาน : ต่ำสุด −25 °C / สูงสุด +70 °C (แห้ง)การออกแบบแนวรอยต่อ : อ้างอิง “การรับรองมาตรฐาน” คู่มือการป้องกันอัคคีภัยแบบพาสซีฟ หรือติดต่อฝ่ายบริการด้านเทคนิคของซิก้าสำหรับข้อมูลเฉพาะข้อมูลการใช้งานการไหลย้อย (การตกท้องช้าง)
| ~1 มม. (20 มม. profile, 50 °C) |
(ISO 7390) |
อุณหภูมิแวดล้อม : ต่ำสุด +5 °C / สูงสุด +30 °Cอุณหภูมิของพื้นผิว
ต่ำสุด +5 °C /สูงสุด +30 °C
ต่ำสุด 3 °C เหนือจุดน้ำค้าง
วัสดุเสริมร่อง : อ้างอิง “การรับรองมาตรฐาน” คู่มือการป้องกันอัคคีภัย Sika Passive Fire Protection Handbook หรือติดต่อฝ่ายบริการด้านเทคนิคของซิก้าสำหรับข้อมูลเฉพาะอัตราการบ่ม
| ~2 มม. / 24 ชั่วโมง (23 °C / 50 % r.h.) |
(CQP 049-2) |
เวลาในการแข็งตัว
| ~15 นาที (23 °C / 50 % r.h.) |
(CPQ 019-1) |
ขั้นตอนการใช้งานการเตรียมพื้นผิว : พื้นผิวต้องสะอาด แห้ง เรียบและเป็นเนื้อเดียวกัน ปราศจากน้ำมัน จารบี ฝุ่น และเศษหลุดร่อนหรือแตกหัก Sikacryl®-620 Fire ยึดเกาะได้โดยไม่มีไพรเมอร์และ/หรือตัวกระตุ้นการทำความสะอาดเครื่องมือและอุปกรณ์ : ทำความสะอาดเครื่องมือและอุปกรณ์ทั้งหมดทันทีหลังจากทำงานด้วยน้ำ เมื่อบ่มตัวแล้ววัสดุที่แข็งตัวสามารถเอาออกได้ด้วยวิธีทางกลเท่านั้น

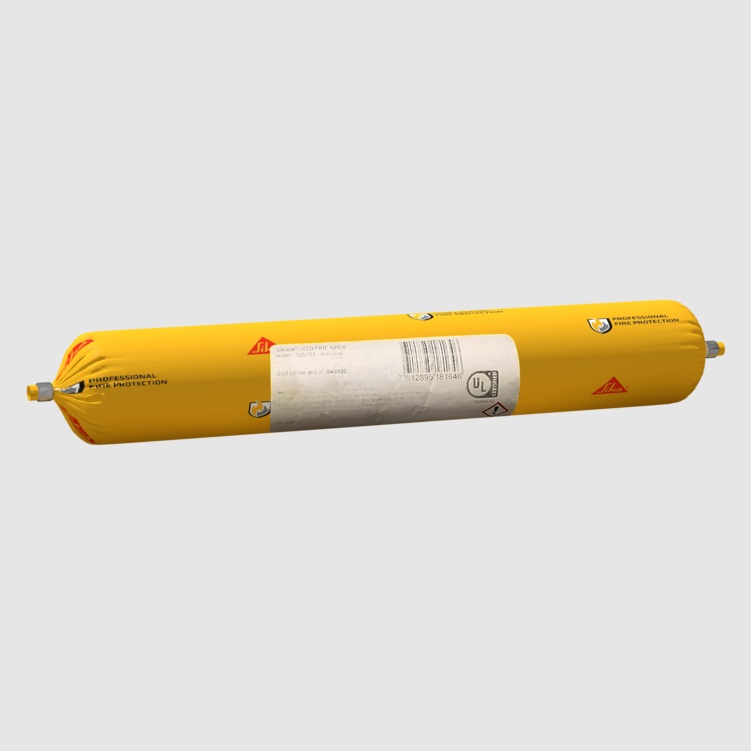

Sikacryl®-620 FireFire resistant acrylic sealant for linear joints in walls and floorsSikacryl®-620 Fire is a fire resistant, 1 part, water-based sealant.
- Up to 4 hours fire resistance according to EN 1366-4
- Good workability
- Good adhesion to a wide range of substrates
UsageSikacryl®-620 Fire is designed for fire resistant connection joints on porous and non-porous substrates.Advantages
- Up to 4 hours fire resistance according to EN 1366-4
- Good workability
- Good adhesion to a wide range of substrates
- Water-based
- Over-paintable
Packaging600 ml foil pack, 12 foil packs per box300 ml cartridge, 12 cartridges per boxColour : White, greySUSTAINBILITY
- VOC emission classification GEV-Emicode EC1PLUS, license number 7145/20.10.00
- Conformity with LEED v4 EQc 2: Low-Emitting Materials
APPROVALS / CERTIFICATES
- CE Marking and Declaration of Performance based on European Technical Assessment ETA 20/1115. ETA issued on the basis of EAD 350141-00-1106:2017 – Fire Stopping and Fire Sealing Products – Linear Joint and Gap Seals.
- Classification report reaction to fire EN 13501-1, Sikacryl®-620 Fire, Exova, Report No. 356703
- Classification report resistance to fire EN 13501-2, Sikacryl®-620 Fire, Exova, Report No. 343247B
- Fire testing BS 476-20, Sikacryl®-620 Fire, Exova, Report No. 344546A
- Sound transmission ISO 10140-2, Sikacryl®-620 Fire, SRL, Report No. C/22765/T03
- UL Product iQ, XHBN.HW-S-0113 - Joint Systems, System No. HW-S-0113
- IMO Certificate MED D, Sikacryl®-620 Fire, DNV GL SE, No. MEDD00001VA
- IMO Certificate MED B, Sikacryl®-620 Fire, DNV GL SE, No. MEDB00005C6
Product Information Composition : 1 part acrylic dispersionShelf life : Sikacryl®-620 Fire has a shelf life of 24 months from the date of production, if stored in undamaged, original, sealed packaging, and if the storage conditions are met.Storage conditions : Sikacryl®-620 Fire shall be stored in dry conditions, where it is protected from direct sunlight and frost, at temperatures between +5 °C and +25 °C.Density
Application InformationSag flow
| ~1 mm (20 mm profile, 50 °C) |
(ISO 7390) |
Ambient air temperature : +5 °C min. / +30 °C max.Substrate temperature
+5 °C min. / +30 °C max.
min. 3 °C above dew point temperature
Backing material : Refer to ‘Approvals / Certificates’, Sika Passive Fire Protection Handbook or contact Sika Technical Services for specific information.Curing rate
| ~2 mm / 24 hours (23 °C / 50 % r.h.) |
(CQP 049-2) |
Skinning time
| ~15 min (23 °C / 50 % r.h.) |
(CPQ 019-1) |
Application stepsSUBSTRATE PREPARATION : The substrate must be clean, dry, sound and homogeneous, free from oils, grease, dust and loose or friable particles. Sikacryl®-620 Fire adheres without primers and/or activators.CLEANING OF EQUIPMENT : Clean all tools and application equipment immediately after use with water. Once cured, residual material can only be removed mechanically.
