Sikadur-Combiflex® SG-20 M เทปคุณภาพสูง สำหรับปิดรอยต่อที่มีการเคลื่อนตัวและรอยแตกร้าว
Sikadur-Combiflex® SG-20 Mเทปคุณภาพสูง สำหรับปิดรอยต่อที่มีการเคลื่อนตัวและรอยแตกร้าวSikadur-Combiflex® SG-20 M เป็นเทปกันซึมที่มีความยืนหยุ่น ผลิตจากโพลีโอเลฟินส์แบบยืดหยุ่นได้ (FPO) ด้วยคุณสมบัติการยึดเกาะขั้นสูง ด้านหนึ่งของเทปมีแถบสีแดง เพื่อความสะดวกในการใช้งานกับรอยต่อขยายตัว มีความหนา 2 มิลลิเมตร ผลิตภัณฑ์นี้เป็นส่วนหนึ่งของผลิตภัณฑ์ในกลุ่ม Sikadur Combiflex® SG
- ยึดเกาะกับส่วนโครงสร้างได้ดีโดยไม่ต้องใช้สารเคมี หรือสารประกอบอื่นช่วย
- มีความยืดหยุ่นสูง สามารถปิดรอยร้าวและรอยต่อได้
- ต้านทานสารเคมีได้ดี
การใช้งาน ใช้ปิดรอยต่อและรอยร้าวที่เกิดขึ้นในโครงสร้างได้หลายประเภท ดังนี้:
- อุโมงค์และท่อระบายน้ำ
- โรงไฟฟ้าพลังน้ำ
- โรงบำบัดน้ำเสีย
- โครงสร้างชั้นใต้ดิน
- โครงสร้างกักเก็บน้ำ
- บ่อพักน้ำดื่ม
ใช้กับลักษณะงานดังนี้:
- รอยต่อที่มีการเคลื่อนตัว (Movement joints)
- รอยต่อการก่อสร้าง (Construction joints)
- งานฝังท่อ
- รอยร้าวทั่วไป
- ชิ้นส่วนโครงสร้างอาคารที่มีโอกาสเกิดการทรุดตัวที่ไม่เท่ากัน
คุณลักษณะ/คุณประโยชน์
- ยึดเกาะกับส่วนโครงสร้างได้ดีโดยไม่ต้องใช้สารเคมี หรือสารประกอบอื่นช่วย
- มีความยืดหยุ่นสูง สามารถปิดรอยร้าวและรอยต่อได้
- ต้านทานสารเคมีได้ดี
- ทนทานต่อการเสื่อมสภาพ
- ทนทานต่อแสงยูวี
- ทนต่อการเจาะของรากไม้
- ใช้งานได้ภายใต้สภาวะอุณหภูมิที่หลากหลาย
- ปราศจากสารประกอบที่เป็นพลาสติไซเซอร์
- ใช้กับงานเชื่อมแบบเป่าลมร้อนได้
- ปลอดภัย สามารถใช้ได้กับส่วนที่สัมผัสกับน้ำดื่ม
บรรจุภัณฑ์ 1 ม้วน มีความยาว 25 เมตร/ ม้วนลักษณะของสินค้า/สี : แผ่นสีเทาอ่อนชนิดยืดหยุ่นได้การรับรองมาตรฐาน
- ความต้านทานรากไม้ CEN/TS 14416, Sikadur Combiflex® SG, SKZ รายงานเลขที่ 89643/09
- ข้อกำหนดเกี่ยวกับน้ำสูงสุด +50 °C BS6920-1:2000, Sikadur Combiflex® SG, WRAS หมายเลขอนุมัติ 1708503
- เครื่องหมาย CE และการประกาศประสิทธิภาพตามมาตรฐาน EN13967 - แผ่นยืดหยุ่นสำหรับการกันน้ำ - การป้องกันความชื้น และการใช้งานถังใต้ดิน
- การทดสอบสภาพดินฟ้าอากาศประดิษฐ์, Sikadur-Combiflex® SG รายงานเลขที่ MT Nr. 09/0177
ส่วนประกอบหลักทางเคมี : โพลีโอเลฟินส์ชนิดยืดหยุ่นได้ (FPO)อายุผลิตภัณฑ์ : 12 เดือน นับจากวันที่ผลิต การเก็บรักษา : จัดเก็บในบรรจุภัณฑ์ที่ปิดสนิทและไม่เสียหาย บริเวณที่แห้ง ภายใต้อุณหภูมิระหว่าง +5 °C และ +30 °C กรณีเปิดใช้งานแล้ว จะต้องใช้ให้หมดภายใน 2 เดือนความยาว : 25 เมตร/ ม้วนความกว้าง : 15, 20, 25, 30 เซนติเมตรความหนาที่มีประสิทธิภาพ
2.0 มิลลิเมตร (-5 % / +10 %) |
(EN 1849-2) |
มวลต่อหน่วยพื้นที่
2095 กรัม/ ตร.ม (-5 % / +10 %) |
(EN 1849-2) |
ข้อมูลระบบ โครงสร้างระบบ
ต้องเลือกผลิตภัณฑ์ของระบบดังต่อไปนี้ ซึ่งขึ้นอยู่กับการออกแบบ:
เทป
- Sikadur-Combiflex® SG-10 / -20 type P หรือ M
กาว
- Sikadur-Combiflex® CF Adhesive Normal หรือ Rapid
- Sikadur®-31 CF หรือ DW
ข้อมูลการใช้งานอุณหภูมิแวดล้อม : อ้างอิงเอกสารระบบผลิตภัณฑ์: Sikadur Combiflex® SG Systemอุณหภูมิของพื้นผิว : อ้างอิงเอกสารระบบผลิตภัณฑ์: Sikadur Combiflex® SG System

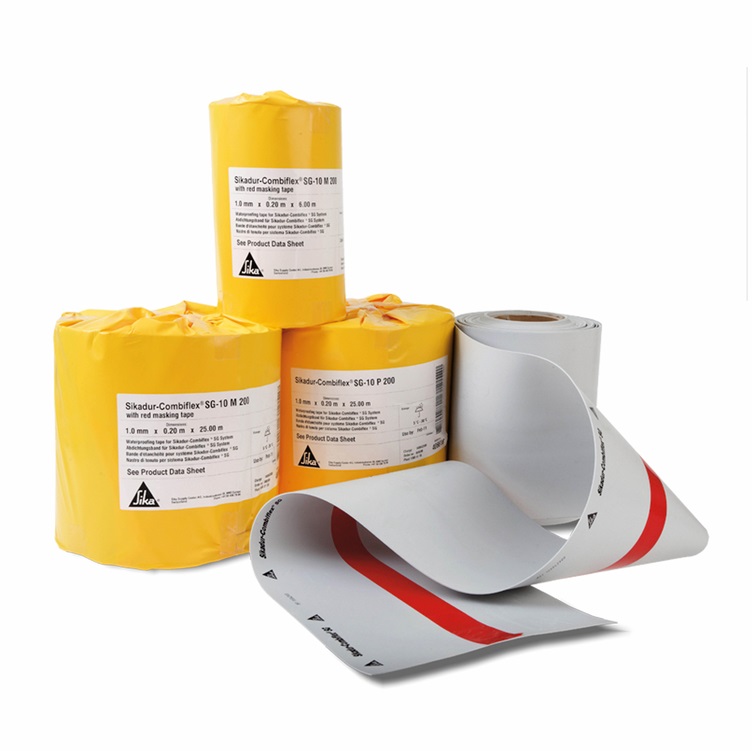

Sikadur-Combiflex® SGHigh performance movement joint and crack sealing tape with red masking tape
Sikadur-Combiflex® SG-20 M is a flexible waterproofing tape based on modified flexible Polyolefin (FPO) with advanced adhesion properties. It has red masking tape on one side for easier application over expansion joints. Thickness 2,0 mm.The product is part of the Sikadur Combiflex® SG System.-20 M
- Advanced adhesion, no activation on site required
- Highly flexible - high crack and joint bridging ability
- Good chemical resistance
Usage Sealing all types of joints and cracks in many different structures and applications including:
- Tunnels and culverts
- Hydroelectric power plants
- Sewage treatment plants
- Basements
- Water retaining structures
- Drinking water reservoirs
Sealing of:
- Movement joints
- Construction joints
- Pipe penetrations
- Cracks
- Building components where differential settlement is expected
Advantages
- Advanced adhesion, no activation on site required
- Highly flexible - high crack and joint bridging ability
- Good chemical resistance
- Good resistance to ageing
- Resistant to UV exposure
- Resistant to root penetration
- Performs well within a wide range of temperatures
- Plasticiser-free
- Hot air weldable
- Can be used in contact with potable/drinking water
Packaging
1 roll of 25 m length
Refer to current price list for packaging variationsColour : Flexible light grey membraneAPPROVALS / CERTIFICATES
- Root Resistance CEN/TS 14416, Sikadur Combiflex® SG, SKZ, Test report No. 89643/09
- Water Regulations up to +50 °C BS6920-1:2000, Sikadur Combiflex® SG, WRAS, Approval No. 1708503
- CE Marking and Declaration of Performance to EN 13967 - Flexible sheets for waterproofing – Damp proofing and basement tanking
- Artificial Weathering Sikadur-Combiflex® SG, Report No.MT Nr. 09/0177
Product InformationComposition : Modified flexible Polyolefin (FPO)Effective thickness
2,0 mm (-5 % / +10 %) |
(EN 1849-2) |
Mass per unit area
2095 g/m2 (-5 % / +10 %) |
(EN 1849-2) |
Width : 15, 20, 25, 30 cmLength : 25 m rollShelf life : 12 months from date of productionStorage conditions : The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between +5 °C and +30 °C. Opened and unprotected rolls must be used within 2 months. Always refer to packaging.System InformationSystem structure
The following system products must be selected from the following depending on design:
Tape
- Sikadur-Combiflex® SG-10 / -20 type P or M
Adhesive
- Sikadur-Combiflex® CF Adhesive Normal or Rapid
- Sikadur®-31 CF or DW
Application Information Ambient air temperature : Refer to the System Data Sheet: Sikadur Combiflex® SG SystemSubstrate temperature : Refer to the System Data Sheet: Sikadur Combiflex® SG System
