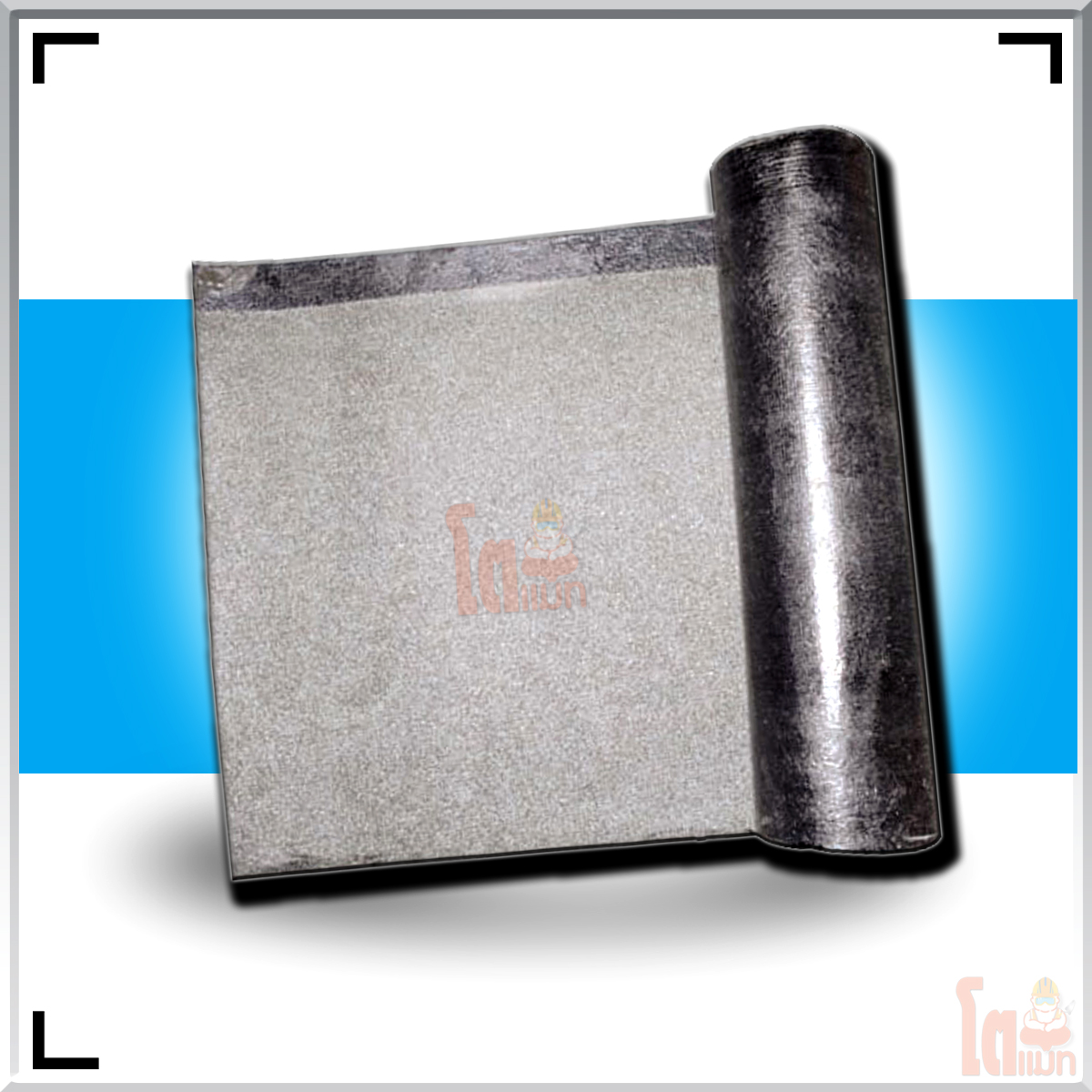

ดร.ฟิคสิท ทอร์ชชิลด์ ( DR. Fixit Torchshield )
ดร.ฟิคสิท ทอร์ชชิลด์ คือแผ่นเมมเบรนโพลเิมอร์มอดิฟายด์บิทูเมนใช้สำหรับป้องกันการรั่วซึมผลิตมาจากบิทูเมนชนิดพิเศษ และโพลิเมอร์ที่คัดสรรพแล้วใช้ป้องกันการรั่วซึมของน้ำสำหรับหลังคา ดาดฟ้าของโครงสร้างทั้งหมดฐานราก ชั้นใต้ดิน สระว่ายน้ำ ฐานรากโครงสร้างเขื่อน เพราะมีความทนทานต่อความร้อนและอุณหภูมิที่เย็นได้ดี โพลิเมอร์มอดิฟายด์บิทูเมนนี้เสริมแรงด้วยผ้าตาข่ายโพลิเอสเตอร์ชนิด เอพีพี จึงมีความแข็งแรง เหนียว ทำให้ทนทานต่อแรงดึงแรงฉีกแรงเจาะทะลุและการขัดถูได้ดีเยี่ยม
ลักษณะการใช้งาน
- ชั้นใต้ดินและฐานรากของโครงสร้าง
- หลังคาโรงงานอุตสาหกรรม
- หลังคาและดาดฟ้า
- พื้นที่จอดรถ
- สะพานอุโมงค์
- รากฐานของเขื่อน
- สระว่ายน้ำ
1. การเตรียมพื้นผิว
- พื้นผิวต้องมีความแข็งแรง สะอาด แห้ง ปราศจากสิ่งสกปรก น้ำมัน จารยี และพื้นผิวต้องเรียบสม่ำเสมอ
2. การรองพื้น
- รองพื้นด้วย ดร.ฟิคสิท ไพรเมอร์ เอส หนึ่งเที่ยวด้วยอัตรา 4-5 ตร.ม/ลิตร/เที่ยว
3.การทำงาน
- ตั้งม้วน ดร.ฟิคสิท ทอร์ชชิลด์ ให้ตรงกับแนวที่จะปูและม้วนกลับในแนวก่อนปู
- คลี่ม้วน ดร.ฟิคสิท ทอร์ชชิลด์ ลงบนพื้นผิวที่รองพื้นด้วย ดร.ฟิคสิท ไฟรเมอร์ เอส แล้ว
- ใช้ก๊าซให้ความร้อนจนแผ่น ดร.ฟิคสิท ทอร์ชชิลด์ หลอมละลายและกดปูลงพื้นพร้อมกับหมุนไปข้างหน้า และกดแน่นกับพื้นผิว
- ให้ทับซ้อนขอบอย่างน้อย 100 มม.
- ใช้เกรียงร้อนประสานปลายรอบการปิดผนึกที่ทับซ้อนกัน และกดทับให้ติดแน่นสม่ำเสมอ และรอบรอยต่อและรอบตอม่อ รางระบายน้ำ ฯลฯควรจะปิดผนึกด้วยวัสดุยาแนวที่เหมาะสมเพื่อป้องกันการรั้วซืม
ข้อควรระวังและข้อจำกัน
- เมื่อติดไฟ ดร.ฟิคสิท ทอร์ชชิลด์ ควรจะต้องเฝ้าดูตลอด
- ไฟไม่ควรวางอยูบนหลังคาสำเร็จรูป
- ระมัดระวังเมื่อทำงานไกล้วัสดุติดไฟหรือรายการที่อาจจะไหม่ได้โดยเปลวไฟจากก๊าซ
- ไม่น่าไปใช้ในสภาพภูมิอากาศที่มีอุณหภูมิเย็น (ต่ำกว่า 5 องศาเซลเซียล)
- ไม่น่าไปใช่ในพื้นที่ชื้น/ เปียก
- ไม่ให้ความร้อนมากเกิดไปจน ดร.ฟิคสิท ทอร์ชชิลด์ไหม้
- เมื่อไหลเยิ้มออกอย่างน้อย 10 ถึง 15 มม. ให้แต่งขอบด้วยเกรียงร้อน
- ความชื้นบนพื้นผิวไม่ควรเกิน 6% ขณะปู
- ใช้คู่กับ ดร.ฟิคสิท ไฟรเมอร์ เอส จะให้คุณภาพที่ดียิ่งขึ้น
- ห้ามใช้กับบริเวณที่มีน้ำแช่ขังตลอดเวา
- ไม่แะนำให้ทดสอบด้วยวิธีการขังน้ำ
แผ่นเอพีพี โพลิเมอร์มอดิฟายด์บิทูเมน สำหรับป้องกันรั่วซึม
- ขนาดบรรจุ : 3 มิลลิเมตร (1 × 10 ม.)
- ขนาดบรรจุ : 4 มิลลิเมตร (1 × 10 ม.)
- สี : เขียวมิเนอรัล , เทามิเนอรัล
หมวดหมู่ : จำหน่าย น้ำยากันซึม - ราคาน้ำยากันซึม ซื้อน้ำยากันซึม

Dr. Fixit Torchshield ranges of polymer – modified bitumen waterproofing membranes are manufactured from rich bitumen & select polymers blended together. It is used for waterproofing of building roofs of all types, basements, foundations, swimming pools & water retaining structures, because it has excellent heat resistance & cold temperature flexibility. The Polymer – modified bitumen is then coated on to a dimensionally stable non-woven polyester carrier to obtain high tensile strength, tear & Puncture resistance.
Dr. Fixit Torchshield membranes are available in APP modified versions
Area of Application
- Basements & Below Ground Structure
- Industrial Roofs
- Sloped & Flat Roofs
- Parking areas
- Bridges & Tunnels
- Foundation of Retaining Wall
- Swimming Pools
Method of ApplicationThis application procedure is a standard guideline for using the 3 & 4 mm membranes only, which may slightly vary upon the site conditions & different appliccation areas.1. Surface Preparation
- Clean & remove dust, dirt, loose pasrticles and unsound substrate. Make surface smooth, even & free local depressions with polymer - modified mortar
2. Priming
- Apply one coat of Dr.Fixit Primer S on cleaned & leveled surface @ 4-5 m/ltr. per coat.
3.Application
- Unroll the Dr.Fixit Torchshield roll after application of primer.
- align the Dr.Fixit Torchsield roll correctly & reroll it in alignment before torching
- Use gas burner to heat substrate & underside to softenung points. When the embossing disappears, roll for ward & press fimly against substrate to bond from the lower end towards the higher end.
- Keep overlap margin for minimum 100 mm.
- Heat both the overlaps & use round tipped trowel to seal overlap. Excess compound should be smoothened & pressed into seam using hot trowel.
Health & Safety Precautions
- Wear glove during application
- General no health hazards associated with the use of Dr.Fixit Torchshield
- Dr.Fixit Primer S is a solvents bese primer, that flammable, and recommend using in ventilated areas and Keeping away from ignition source.
App modified bitumen based,torch applied water proofing sheet membranes
- PACKING : 3 mm. (1 × 10 M.) COLOR : Not Specify
- PACKING : 4 mm. (1 × 10 M.) COLOR : Not Specify
Category : Waterproofing
