ดร.ฟิคสิท ซีลโลบอนด์ 1190
DR. Fixit Sealobond 1190
ดร.ฟิคสิท ซีลโลบอนด์ 1190รายละเอียด
- ดร.ฟิคสิท ซีลโลบอนด์ 1190 เป็นยางหยอดร่องถนนคอนกรีตชนิดพิเศษ ที่ผลิตจากยางมะตอยผสมยางสังเคราะห์ เรซินและสารเพิ่มคุณภาพอื่นๆ ทำให้มีคุณสมบัติดีเยี่ยม ในการป้องกันน้ำซึม ลงรอยต่อถนนคอนกรีต อีกทั้งมีการยืดตัวสูงและสามารถยึดเกาะรอยต่อได้แน่น แม้ต้องแช่น้าเป็นเวลานาน ๆ
- ดร.ฟิคสิท ซีลโลบอนด์ 1190 เป็นยางหยอดร่อง ในแนวระดับชนิดที่ต้องใช้ความร้อนเคี่ยวให้เหลว จนถึงจุดไหลเทที่ผลิตภัณฑ์สามารถยึดเกาะกับผิวคอนกรีต ได้อย่างมีประสิทธิภาพ
- ดร.ฟิคสิท ซีลโลบอนด์ 1190 มีจุดไหลเทที่อุณหภูมิต่ำ อีกทั้งไม่มีส่วนผสมของน้ำมันที่ใช้เป็นสารละลาย จึงมีความปลอดภัย และประหยัดเวลาในการเคี่ยว
มาตรฐาน
- ม.อ.ก 479-2541
- กรมทางหลวง
คุณสมบัติ
- เคี่ยวหลอมละลายง่าย
- ทนความร้อนในการเคี่ยว
- ยืดหยุ่นตัวดีตามการขยาย และหดตัวของคอนกรีต
- ไม่หลุดล่อน แม้น้ำท่วมขังเป็นเวลานาน
- ไม่ไหลเยิ้มเมื่อแดดร้อน
- ยึดเกาะผนังร่องได้ดีและทนทาน
ลักษณะการใช้งานหยอดร่องคอนกรีตทั่วๆไป เช่น
- ถนนคอนกรีต
- สะพาน
- เขื่อน
- รอยต่อพื้นแผ่นคอนกรีตทั่วไป ฯลฯ
อัตราการใช้
- ปริมาณการใช้ ดร.ฟิคสิท ชีลโลบอนด์ 1190 โดยประมาณ น้ำหนักเป็นกิโลกรัมต่อ 1 เมตรของ ร่องคอนกรีดขนาดต่างๆ
วิธีการใช้งาน1. การเตรียมร่องหรือรอยต่อ:
- ร่องหรือรอยต่อต้องแห้งสะอาด ไม่มีเศษสิ่งสกปรกที่หลุดล่อนได้ง่าย ฝุ่นผง คราบน้ำมัน แว็กซ์ น้ำยาบ่มคอนกรีด ผิวที่หลุดหรือรอยแตกบิ่น ต้องทำการซ่อมแซมด้วยวัสดุที่เหมาะสม เช่น ปูนซ่อมแซมโครงสร้าง และทิ้งไว้ให้แห้ง ก่อนทำงานในขั้นต่อไป
2. การทารองพื้น
- เพื่อการยึดเกาะที่ดีควรทาด้วยรองพื้น ดร.ฟิคสิท ชีลโลบอนด์ 1190 ไพเมอร์ ทิ้งไว้ให้แห้งก่อนทำการหยอดยาง
3. การทำงาน
- นำ ดร.ฟิคสิท ชีลโลบอนด์ 1190 ไพเมอร์ ที่มีแผ่นพลาสติกหุ้มอยู่(ไม่จำเป็นต้องแกะพลาสติกที่ห่อหุ้มออก เพราะพลาสติกจะละลายเป็นเนื้อเดียวกันกับผลิตภัณฑ์) ใส่ลงในหม้อหลอมที่มีน้ำมันเป็นตัวกลางส่งผ่านความร้อน
- ขณะหลอม ควรกวนให้เป็นเนื้อเดียวกัน ควบคุมอุณหภูมิของน้ำมันไม่ให้เกิน 240 องศาเซลเซียส และอุณหภูมิมีของยางหยอดร่องไม่ให้เกิน 180 องศาเซลเซียส
- คนให้ยางละลายสม่ำเสมอ จนละลายหมด
- หยอด ดร.ฟิคสิท ชีลโลบอนด์ 1190 ไพเมอร์ ที่หลอมเป็นเนื้อเดียวกันแล้ว ลงในร่องคอนกรีดควรใช้หมดภายใน 2-3 ชั่วโมง
- ทิ้งไว้ให้แห้ง 4-5 ชั่วโมง ก่อนเปฺิดใช้งาน
4. การทำความสะอาด
- เครื่องมือที่ใช้ในการทำงาน ควรล้างทำความสะอาดด้วยน้ำมันก๊าด หรือน้ำมันสนทันทีที่ใช้งานเสร็จ
อายุและการเก็บรักษาผลิตภัณฑ์
- ไม่เกิน 1 ปี ในภาชนะที่ปิดสนิท เก็บในที่ร่มและแห้ง
ความปลอยภัยในการใช้งาน
- หากเกิดกรณีไฟลุกให้ใช้ผงเคมีแห้ง คาร์บอนไดออกไซด์ หรือทราย อย่าใช้น้ำดับไฟ
- อย่าให้ยางหยอดร่องที่ร้อนกระเด็นถูกผิวหนัง/ร่างกาย ในกรณีที่โดนยางขณะร้อน ให้ใช้น้ำเย็นราดบริเวณที่โดนและรีบปรึษาแพทย์ทันที
- อย่าให้น้ำหกลงไปในยางหยอดร่องที่ร้อน เพราะน้ำจะเดือดและยางหยอดร่องจะกระเด็นออกมา
วัสดุยารอยต่อคอนกรีตแบบยืดหยุ่น ชนิดเทร้อนขนาดบรรจุ 15 กิโลกรัมสีดำหมวดหมู่ : วัสดุยาแนวรอยต่อ

Dr.Fixit Sealobond 1190
- Dr. Fixit Sealobond 1190 is a hot poured joint sealant. It is composed of special type of synthetic rubber, asphalt, resin, chemical additive and filler, it has excellent properties to prevent the passage of moisture down to the joint, high elasticity, adheres firmly and will not lose bond even if it is immersed in water for long time.
- Dr. Fixit Sealobond 1190 is for horizontal joint using heat to melt into liquid to pour temperature which will effectively bond to the concrete.
- Dr. Fixit Sealobond 1190 has low pour temperature containing no solvent making it highly save and saves melting time.
Features & Benefits
- Easy application
- Elastomeric
- Excellent Adhesion
- Good resistance to hot weather and sunlight
Specification
- Thai Industrial Standards Institute (TISI) 479-2541
- Highway Department (HWD)
Area of Application
Seal horizontal joint of
- Concrete road
- Bridge
- Dam
- Concrete floor joint of concrete slab etc
Rate of usesAverage consumption of Dr.Fixit Sealobond 1190 in kg for one linear meter length.Method of ApplicationSURFACE PREPARATION:
- The Joint must be clean, dry and free of dirt, dust or other loose meterials.
PRIMING
- to ensure good adhesion of sealant, application of Dr.Fixt Sealobond Primer is recommended
APPLICATION
- Melt Dr.Fixit Sealobond 1190 together with the wrapped plastic in oil- jacketed melted.
- Control temperature of heat transfer oil not higher than 240 °C and sealant not higher than 180 °C
- Stir sealant homogeneously until thoroughly melted.
- Pour melted sealant into prepared joints.
- the melted sealant should be used all in 2-3 hrs.
- Allow the poured sealant to dry and settle for 4-5 hrs. Before opening traffic
CLEAING
- Tools and equlpment's should be cleaned immediately with kerosene or mineral turpentine.
Shelf Life & Storage
- Maximum 1 year in sealed container kept under shed area
Health & Safety Precaution
- Incase of fire use dry chemical or carbon dioxide or sand. Do not use water.
- if molten material comes onto contact with the skin, immerse the injured part under running cold water, and obtain medical advise immed iately.
- do not allow water to come into contact with molten material. This may cause it to boil over.

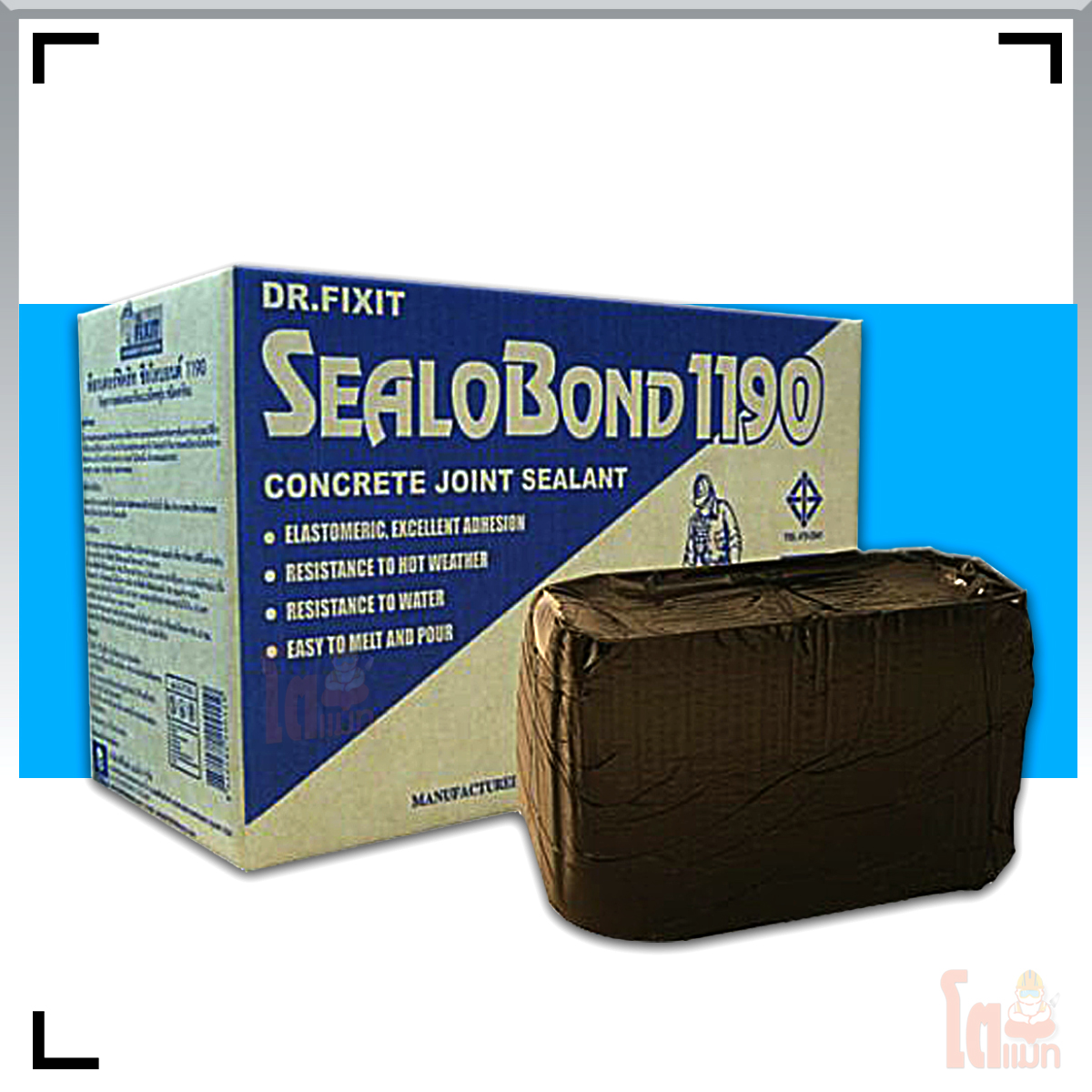

A Hot-Applied Elastomeric Concrete Joint SealantPACKING 15 kg.COLOR BlackCategory : Sealants
